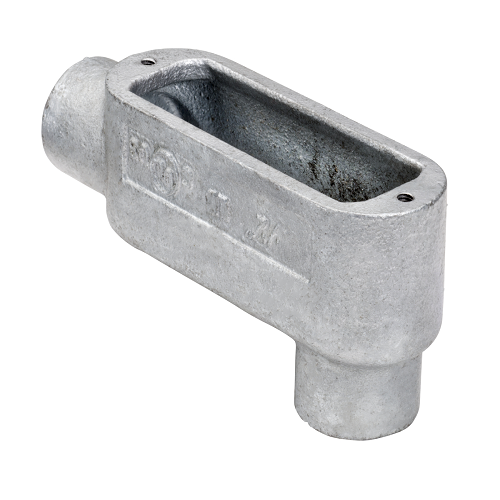

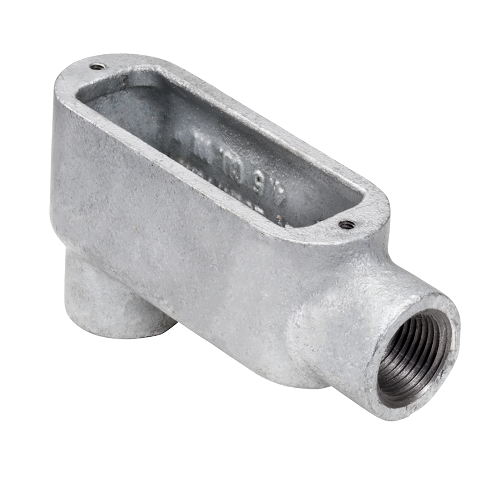

3/4" Rigid Conduit Bodies LB Type Malleable Iron HDG LB2MHDG (Pack of 10)

Product Information

Specification

About :

The body and cover are typically made of malleable iron for strength and durability. The hot-dip galvanization process adds a layer of zinc to protect against corrosion, making it suitable for outdoor or harsh environments. As a 3/4" fitting, the internal diameter would accommodate 3/4" rigid conduits. The overall dimensions, including the LB shape (elbow), should be considered for installation space requirements. The threads for connecting to rigid conduits would be compatible with standard 3/4" threads, ensuring a secure and tight fit. Usually, these fittings come with a cover and a gasket to ensure a weatherproof seal. The cover might have screws for easy access to the wiring.

Also known as:

3/4 Inch Rigid Conduit Body, 3/4" LB Conduit Body in Galvanized Malleable Iron, 3/4 Inch Hot-Dip Galvanized Malleable Iron LB Conduit Body,  3/4 Inch Rigid Conduit with Hot-Dip Galvanized.

Specification:

Material : Malleable Iron
Height : 2.36 Inch
width : 1.57 inch
UPC : 751338866140

Features:

• Threaded LB type
• NPT tapered hubs
• Suitable for use in concrete
• Hot dip galvanized finish provides superior protection against severe environmental factors
