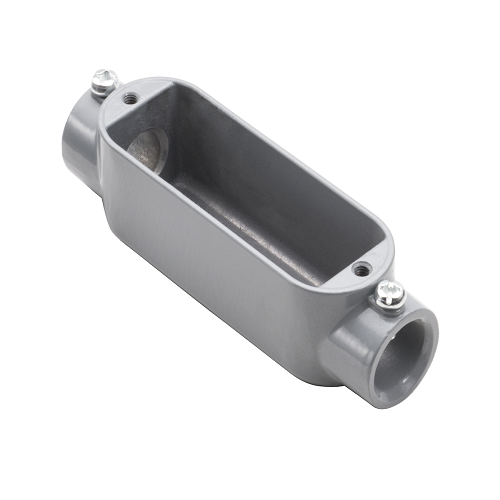

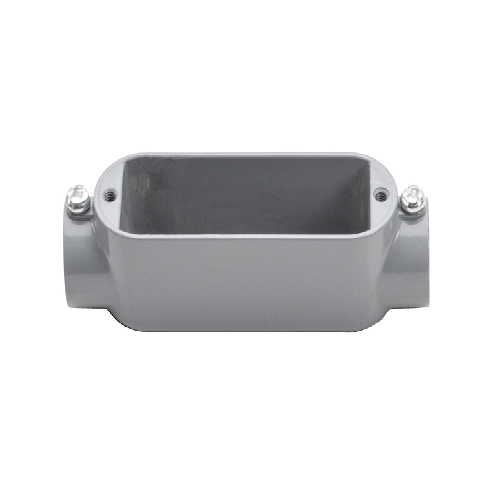

3/4" EMT C Type And Rigid Conduit Bodies C2SS (Pack of 40)

About :

A 3/4-inch EMT/Rigid conduit body is a component used in electrical conduit systems. These conduit bodies are often made from durable materials like aluminum, PVC, or galvanized steel. The choice of material affects its resistance to corrosion, impact, and its overall durability. The 3/4-inch" specification refers to the inner diameter of the conduit body, which matches the 3/4-inch EMT (Electrical Metallic Tubing) or rigid conduit pipes. They come in various shapes like T, C, LB, LL, or LR, each designed for specific types of wire routing and connections. These conduit bodies have threaded or set-screw type connections to securely attach to EMT or rigid conduits. The choice between threaded or set-screw connections depends on the type of conduit used and the installation requirements. The interior space must be sufficient to accommodate the number and size of wires being routed, without overcrowding, which can comply with National Electrical Code (NEC) requirements.

Also known as:

3/4" Conduit Outlet Body, 3/4" Electrical Conduit Body, 3/4" Wire Pulling Elbow, 3/4" Conduit Access Fitting.

Specification:

Material : Copper free aluminum die cast
Size : 3/4"
UPC : 751338199125
Part Number : C2SS

Features:

• Combination C
• NPT tapered hubs
• Suitable for use in concrete
• NEMA FB 1 rated for wet locations use with threaded rigid metal conduit only
