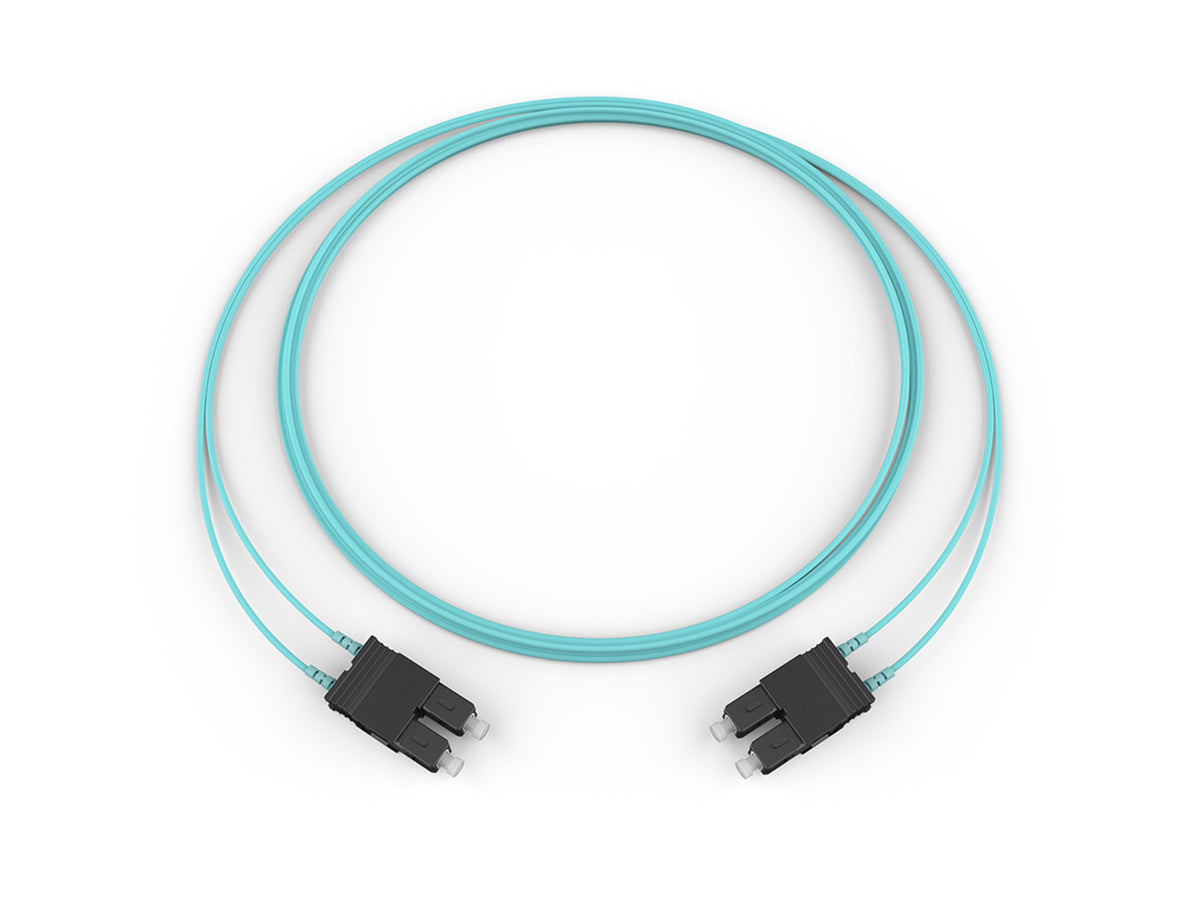

2F SC-SC Duplex Multimode Jumpers Standard Aqua Jacket 5 Meters Corning 575702T5120005M
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
| Application | Vertical Riser, General Building Applications |
| Cable Type | Tight-Buffered |
| Flame Rating | Riser (OFNR) |
| Cable Assembly Type | Two Fiber |
| Part Number | 575702T5120005M |
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
| Fiber Count | 2 |
| Length | 5 m (16.4 ft) |
| Outer Jacket Color | Aqua |
| Part Number | 575702T5120005M |
Optical Characteristics:
| Fiber Code | T |
| Fiber Type | Multimode |
| Performance Option Code | 80 |
| Fiber Core Diameter | 50 µm |
| Minimum Effective Modal Bandwidth (EMB) | 2000 MHz*km / - |
| Maximum Attenuation | 2.8 dB/km / 1.0 dB/km |
| Min. Overfilled Launch (OFL) Bandwidth | 1500 MHz*km / 500 MHz*km |
| Serial 1 Gigabit Ethernet | 1000 MHz*km / 600 MHz*km |
| Serial 10 Gigabit Ethernet | 300 MHz*km / - |
| Wavelengths | 850 nm / 1300 nm |
| Fiber Category | OM3 |
Specifications - Connectors A and B:
| Insertion Loss, Typical | 0.35 dB |
| Boot Color | Aqua |
| Connector Type | SC Duplex |
| Ferrule Material | Ceramic |
| Housing Color | Black |
| Housing Material | Composite |

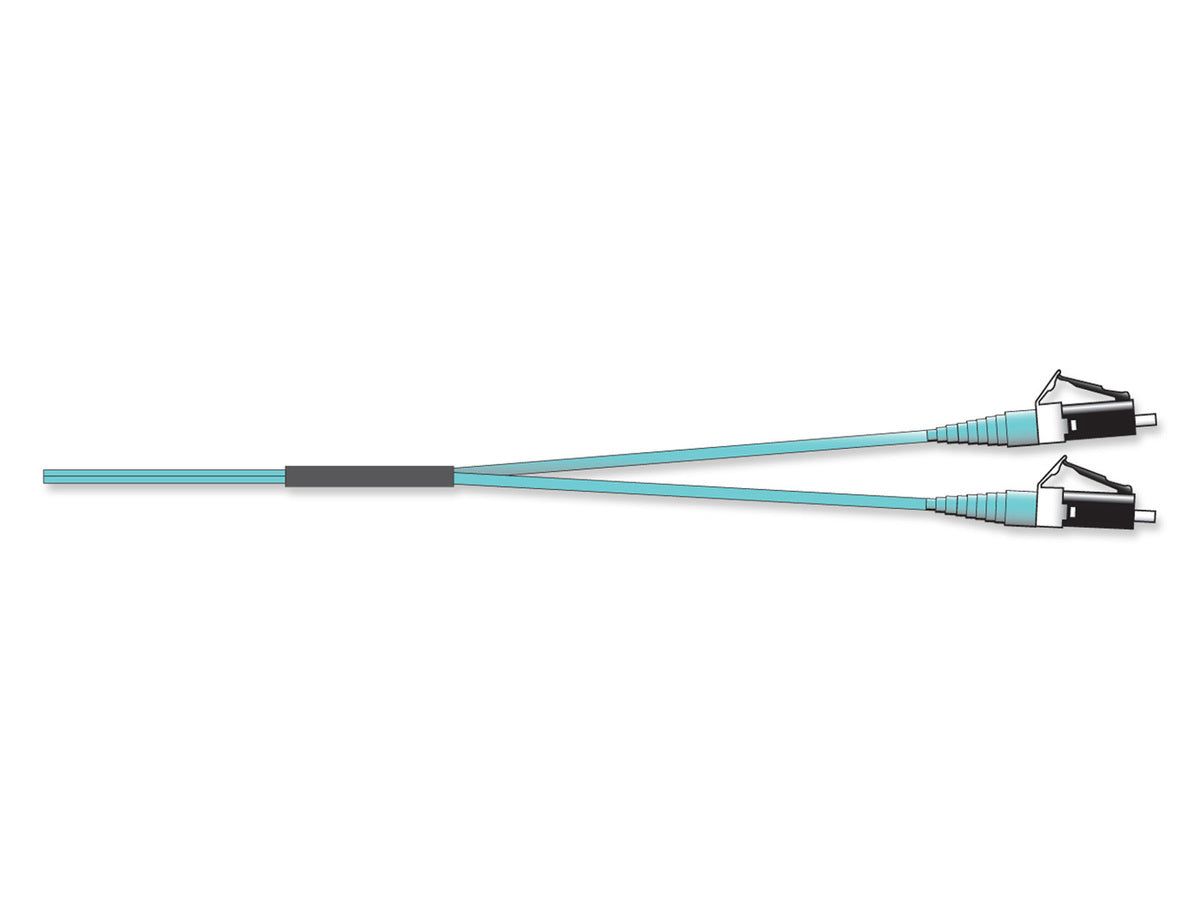

Furcation - Connectors A and B:
| Leg Diameter | 2 mm (0.08 in) |
| Plug Type | Heat-shrink sleeve |
| Plug Height | 5.5 mm (0.22 in) |
| Plug Width | 3.5 mm (0.14 in) |
| Plug Depth | 25.4 mm (1 in) |
| Leg Length ( Connector A ) | 254 mm -0 / +38.1mm (10 in -0 / +1.5in) |
| Leg Length ( Connector B ) | 254 mm (10 in) |
Description:
Two-fiber cable assemblies are offered with a variety of connector and cable combinations. Connector options include LC, SC, FC, ST® compatible, and MT-RJ.
Features and Benefits:
• Flame-retardant jacket
Rugged and durable
• Superior Performance Testing
Every termination is tested to ensure the highest network performance
• State-Of-The-Art Manufacturing Processes
Corning's proprietary manufacturing processes and advanced technology result in unsurpassed product consistency
• Corning advantage
Integrated developer and manufacturer of cable, connectors, and fiber to ensure overall cable assembly performance.
