28 AWG Kynar White Wire R28W-0100 (200 FT)
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
| Type | Kynar Wire |
| UPC | 811490012714 |
| Insulation Type | Kynar |
| Insulation Thickness | 0.005" (0.127 mm) |
| Wire Gauge | 28 AWG (0.32 mm) |
| Overall Diameter | 0.024" (0.60 mm) |
| Standards | UL 1422 |
| Voltage | Not Rated |
| Reel Length | 100 ft. (30.48 meters) |
| Dimensions | 2.79 in x 2.79 in x 1.28 in (7.09 cm x 7.09 cm x 3.25 cm) |
| Part Number | R28W-0100 |

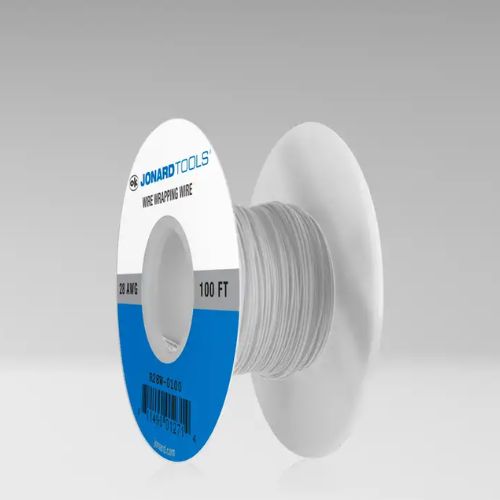

28 AWG Kynar White Wire
Description:

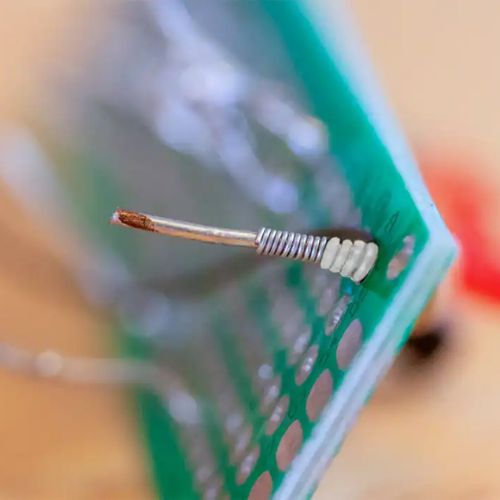

Kynar wire is commonly used where flexibility, strength, and low weight are critical, making it ideal for wire wrap, power supply, medical, and aerospace applications. Its lightweight, small-diameter design also makes it a popular choice for circuit board prototyping. The Kynar insulation provides excellent mechanical performance across a wide temperature range and resists a broad spectrum of chemicals, including most acids, bases, alcohols, halogenated solvents, and hydrocarbons. These properties make Kynar wire a reliable solution even in the harshest environments.
Features:
⦿ OHFC silver-plated copper conductor delivers excellent conductivity and flexibility
⦿ Kynar insulation offers heat resistance up to 105°C and superior abrasion protection
⦿ Meets or surpasses UL 1422 standards
Download PDF Spec Sheet
