26 FT 24 AWG UTP Patch Cord Off White UTP6AX26

Where are we? 4 Continents 9 Countries


Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification

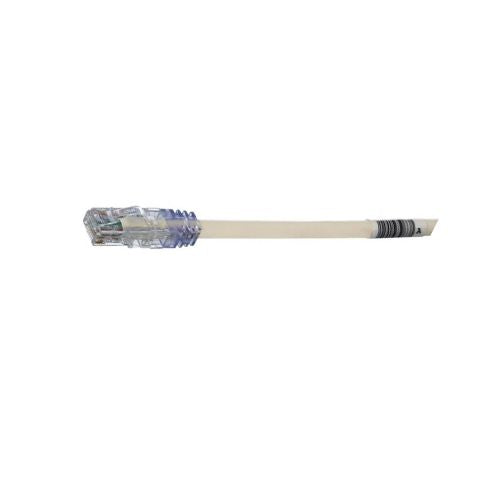

Note : Image for reference only.The actual product may differ
About:
• The TX6A 10Gig Cat 6A UTP Patch Cord is a 26-foot, 0.250-inch (6.4mm) diameter, off-white cord constructed of 24 AWG unshielded twisted pair solid CM cable with high-performance modular plugs.
• Its design limits alien crosstalk, ensuring 10 Gb/s transmission.
• The tangle-free latch prevents snags and allows for quick release, streamlining moves, adds, and changes.
• Enabled with RapidID, the product features pre-installed barcodes for simple port mapping using RapidID software
Also Known As:
Patch Cord, Patch Cable, Ethernet Cable, Network Cable, LAN Cable, Twisted Pair Cable, UTP Copper Patch Cord.
Specification:
Product Type | Patch Cord |
Conductor Gauge (AWG) | 24 |
Sub Brand | Pan-Net |
Performance Level | Category 6A |
Conductor Type | Solid |
Cable Construction | U/UTP |
Patch Cord Type | Unshielded |
Plug Housing Material | Plastic |
Jacket Material | Polyvinyl Chloride |
Connector 1 Type | Modular Plug |
Connector 2 Type | Modular Plug |
Overall Length (ft) | 26 |
Nominal Cable Outside Diameter (In.) | 0.25 |
Wiring Scheme | T568B |
Maximum Operating Temperature (°F) | 140 |
Minimum Operating Temperature (°F) | 14 |
Color | Off White |
Flammability Rating | CM |
Plug Type | Meets IEC 60603-32 |
UPC |
613056770287 |
Features:
• 100% performance tested confidence that each patch cord delivers specified performance
• Flexible cable design improved cable management in high density applications enabling easier installations
• Center de-embedded plug performs in center of ANSI/TIA-568.2-D component range ensuring interoperability and superior performance
• Integral pair manager optimizes performance, consistency and reliability by reducing untwist at plug
• Patented tangle-free latch prevents snags and provides easy release, saving time and providing reliability on frequent moves, adds and changes
• Slender strain relief boot provides easy access in high-density applications
Download PDF Spec Sheet
