250-500V NEMA 4X Enclosed Motor Starter 38A 3PH Reset Button AF3806R2M-4K
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
| Height | 13 |
| Depth | 9 |
| Width | 13 |
| Full Load Amps @115V | 38 FLA |
| Voltage | 250-500 V |
| Phase | Three Phase |
| Enclosure Material | Polycarbonate |
| Operating Mode | Reset Button Only |
| Color | Gray |
| Overload Max Amps | 24-29 A |
| Manufacturers Part Number | AF3806R2M-4K |
| Brand | Springer Controls |
250-500V NEMA 4X Enclosed Motor Starter 38A 3PH Reset Button AF3806R2M-4K
Description:

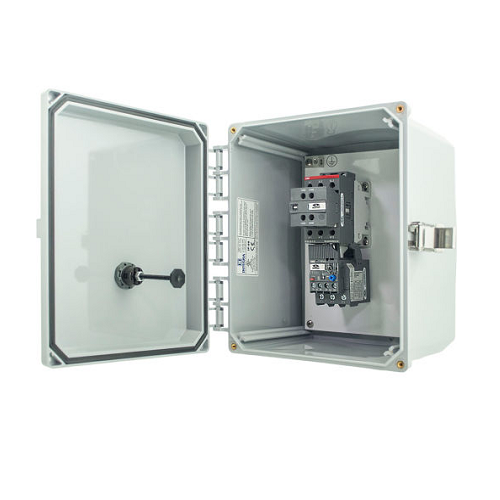

Springer controls manufactures a complete line of IEC enclosed AC motor starters up to 60HP or 80A. Assembled motor starters consist of a contactor, overload relay and a NEMA 4X rated polycarbonate enclosure. To select the proper starter for your requirements. If the control voltage is not the same as the line voltage we refer to this as separate control voltage. If the starter needs to be activated from an external switch, we add terminals to accept the control power input from that switch. We refer to this as remote start terminals it is assumed, in this arrangement that the line voltage and control voltage are the same. If you would like remote start terminals and will be using different voltage for line power and control power, we refer to this as separate control voltage + remote start terminals.
38A
3 Phase
Separate Coil Voltage

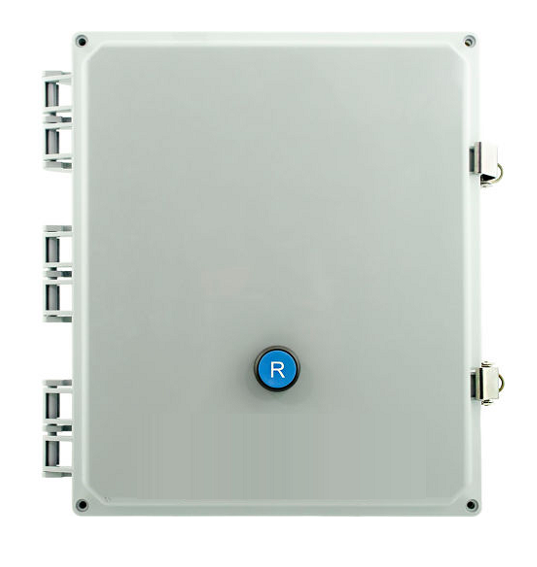

Reset Button Only
250-500V AC/DC Coil
24-29A O/L
NEMA 4X Poly
Features:
1) Refer to the motor or equipment nameplate to verify the Full Load Amperage (FLA) at the input voltage you will supply.
2) Choose the control power used to close the contactor.
3) Choose the overload by selecting a current range that contains the FLA of the motor from step 1. Once you have done this it should narrow down the starters to only options suitable for your motor and power requirements. Then select your starter based on the following optional criteria
4) If the line power will be used as the control power as well, this is referred to as a direct-online starter.
