250 µm and 900 µm SC, APC, FS, NPC+ No Polish Connector NPCP-SCA-48 (Pack of 48)
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
About:

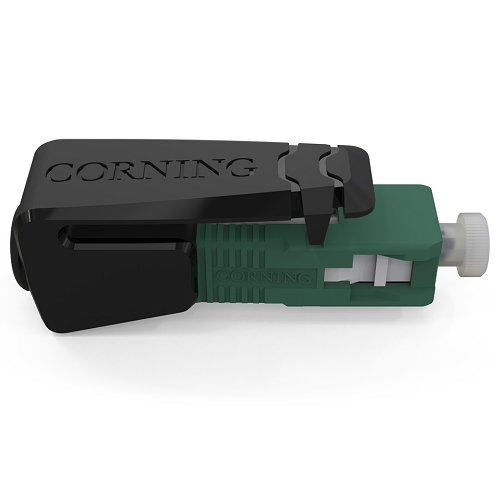

The NPC+ (No Polish Connector) eliminates field polishing, loose parts, and termination tools. The innovative buffer clamp design eliminates rework by delivering superior twist and transmission with applied load (TWAL) mechanical performance. After fiber preparation and cleaving, installation is a simple three-step process: insert fiber, actuate splice, activate the buffer clamp. Faster than fusion splicing, the NPC+ delivers savings in installation expense and reduces overall complexity of termination.
Specifications:
Product Type: Field-Installable Connectors
Fiber Category: Single-mode (OS2)
Technology: No-Epoxy/No-Polish
Housing Color: Green
Ferrule Material: Yttria-stabilized Zirconia
Connector Type: SC
Polish: APC
Weight: 33 g
Part Number: NPCP-SCA-48
Features:
• Connector Type: SC APC (Angled Physical Contact)
• Polish: No Polish (provides low back reflection without the traditional polish)
• Compatibility: Works with both 250 µm and 900 µm fiber diameters
• Low Insertion Loss: Enhanced performance due to no polish
• Durability: High reliability and long-lasting in demanding environments
Download PDF Spec Sheet
