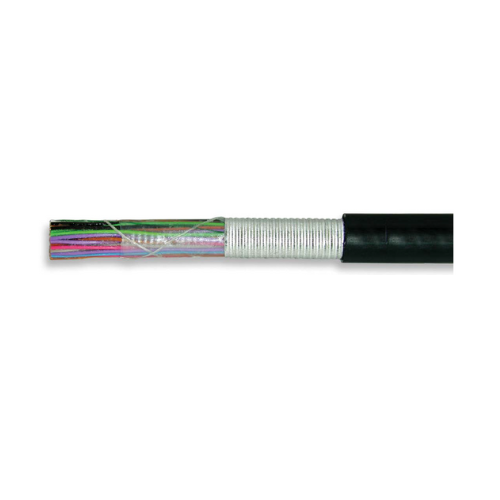

25 Pair 22 AWG Filled ALPETH Foam Skin Single Jacket Cable Black 09-062-77 15,000 ft

Product Information

Specification

About :

Filled ALPETH Cable with foam skin insulation is a single jacket, filled design intended for direct burial application. An ETPR compound completely coats each insulated conductor and fills the air space between conductors.
The shielding and jacketing combined with the filling and flooding compounds throughout the cable provide exceptional durability and resistance to moisture.

Also Known as :

25 Pair Cable, 22 AWG Solid Cable, 22 AWG Foam Skin Cable, ANAA 25 Pair, Direct burial cable, Underground Cable.

Specifications :

Shield: Corrugated bare 8 mil aluminum tape is applied longitudinally over the core wrap; inner and outer surfaces of the aluminum shield are flooded
Insulation: Conductors are dual insulated with an inner layer of foamed, natural polyolefin covered by an outer layer of solid, colored polyolefin; conductor insulation is
color coded in accordance with industry standard
25-Pair Core: Pairs are combined into a cylindrical core
Filling Compound: Entire core assembly is filled with an 80°C ETPR compound,
filling the air space between the insulated conductors

Applications :

• Direct burial and underground conduit

 Benefits :

• Limits resistance unbalance of paired conductors
• Minimizes crosstalk and meets the capacitance unbalance requirements
• Protects core and provides improved mechanical and electrical characteristics

Features :

• Tightly controlled individual conductor dimensions
• Core wrap
• Specially designed pair twist lays
• Polyethylene jacket
