25 FT 28 AWG UTP Copper Patch Cord Black UTP28X25BL
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
About:

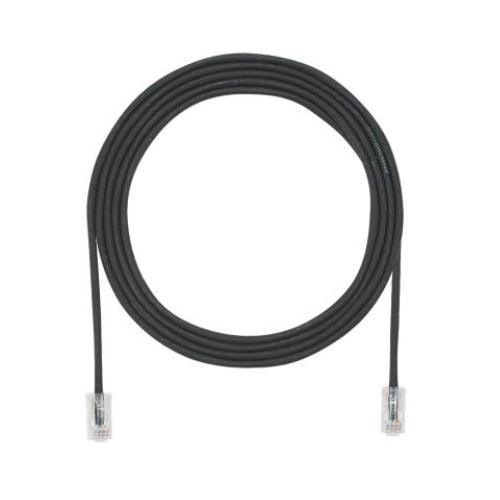

• The TX6A-28 Cat 6A UTP Patch Cord is a 25-Foot, 0.185-inch (4.7mm) diameter, Black cord constructed of 28 AWG unshielded, twisted pair, solid, CM/LSZH cable with high-performance modular plugs.
• Its compact 28 AWG design simplifies installation and management.
• The tangle-free latch prevents snags and ensures a fast release, streamlining moves, adds, and changes.
• Enabled with RapidID, the product has pre-installed barcodes for simple port mapping using RapidID software
Also Known As:
Patch Cord, Patch Cable, Ethernet Cable, Network Cable, LAN Cable, Twisted Pair Cable, UTP Copper Patch Cord.
Specification:
| Product Type | Patch Cord |
| Conductor Gauge (AWG) | 28 |
| Conductor Gauge (kcmil) | 0.16 |
| Sub Brand | Pan-Net |
| Performance Level | Category 6A |
| Conductor Type | Solid |
| Cable Construction | U/UTP |
| Patch Cord Type | Unshielded |
| Plug Housing Material | Polycarbonate |
| Jacket Material | LSZH Material |
| Connector 1 Type | Modular Plug |
| Connector 2 Type | Modular Plug |
| Overall Length (ft) | 25 |
| Application | (1) 10GBASE-T Ethernet (2) Data center I/O Consolidation (3) Data center server virtualization (4) Backbone aggregation (5) Parallel processing and high speed computing |
| Nominal Cable Outside Diameter (In) | 0.185 |
| Wiring Scheme | T568B |
| Maximum Operating Temperature (°C) | 140 |
| Minimum Operating Temperature (°C) | 14 |
| Color | Black |
| Flammability Rating | Dual Rated (CM/LSZH) |
| Plug Type | 8 Position |
| UPC | 074983289066 |
Features:
• 100% performance tested for wire map, next and return loss
• Centered de-embedded plug
• Integral pair manager optimizes performance and consistency by reducing untwist at plug
• Patented tangle free latch prevents snags and provides easy release, saving time and providing reliability on frequent moves, adds and changes
• Smaller diameter, flexible cable design
Download PDF Spec Sheet
