25' 15A Right Angle GFCI 12/3 Cord Set Tri-source End 14880118-2 (Pack of 3)

Product Information

Specification

About :

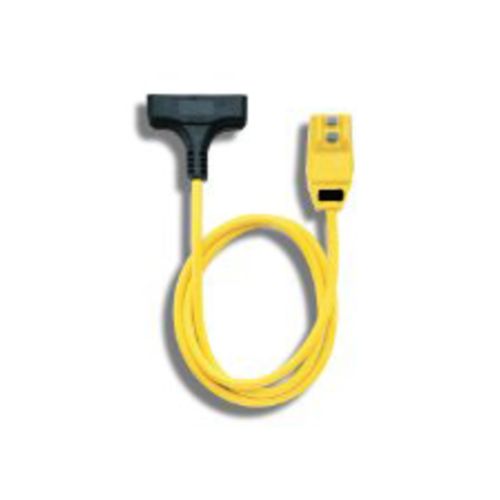

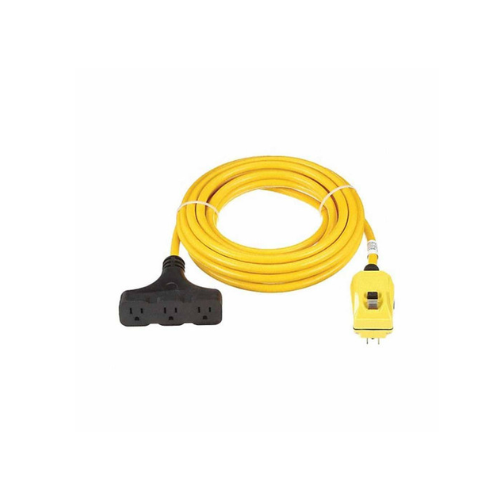

Heavy duty molded T-head with three receptacles. The GFCI is an integral part of male plug. Provides protection for the extra heavy duty cord and three attached tools. 12 gauge cord is ideal for outdoor-rugged construction type environments.

Also known as :

GFCI Cord, GFCI Cord Set, GFCI Tri End, 12/3 GFCI Cord, 12/3 SJTW Tri Source End, 15A Right Angle GFCI.

Specification :

• Amperage : 15A
• Voltage : 120V
• Length : 25 Feet
• Guage : 12/3
• Material : SJTW-A
• Plug Configuration : 5-15P
• Dimensions : 3" H X 8" W x 11" D
• Color : Yellow
• Weight : 4.40 lbs
• UPC : 024098901599
• Part Number : 14880118-2

Features :

• Applications Include: Construction Sites, Saws and Drills, Portable Electric Power Tools, Multiple Tools
• NEMA 5-15P & (3)5-15R
• Grounded Neutral: 4 Ohms
• Trip Response Time for Ground Fault and Grounded Neutral Trip: Less Than 25mS and Grounded Neutral Trip
• Radio Frequency Noise Susceptibility: Operates Within Normal Limits With 0.5 Volts Injected On Power Line 150Khz-230Mhz
• Effect of 10 Amp Turn DC Shock Fault Trip: 5% Maximum Trip Level Variation on Ground
• Endurance: 3,000 Operations Minimum
• Overload Current: Six Times Rated Current
• Insulation Voltage: 1500 Vrms - 1 Min.
• Cord Gauge: 12/3 AWG
