24 Port-Mini 1U CAT5E 110 IDC Patch Panel 041-372/24

Product Information

Specification

24 Port-Mini 1U CAT5E  110 IDC Patch Panel 041-372/24

DESCRIPTION:

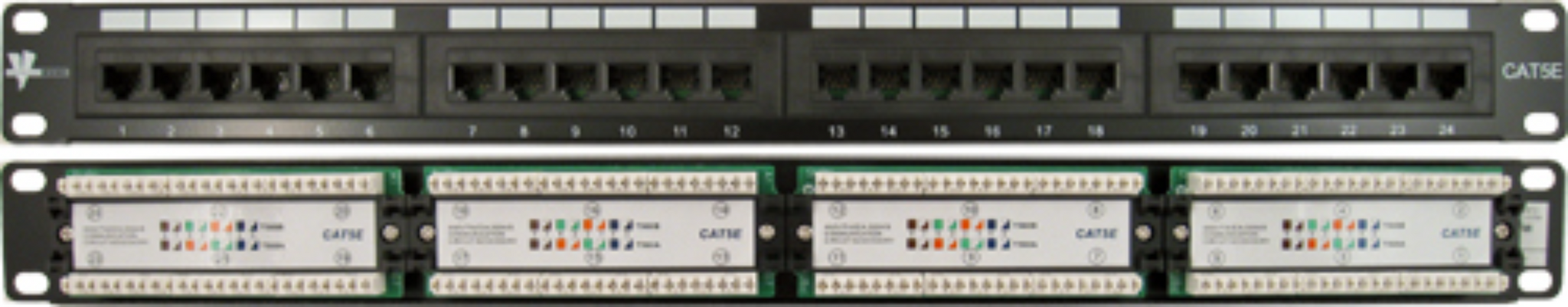

CAT5E 24-Port Patch Panel with 110-Type Termination, 1U, 19-Inch Rack Mountable.

FEATURES:

• Space-Saving Design
• FCC Part 68
• 1xEIA Unit 19(W)x1.3/4(H)x1.1/4(D)
• UL Listed, RoHS Compliant
• Made of sturdy, rolled-edge, anodized steel
• Fully enclosed design for protection of printed circuitry during termination.

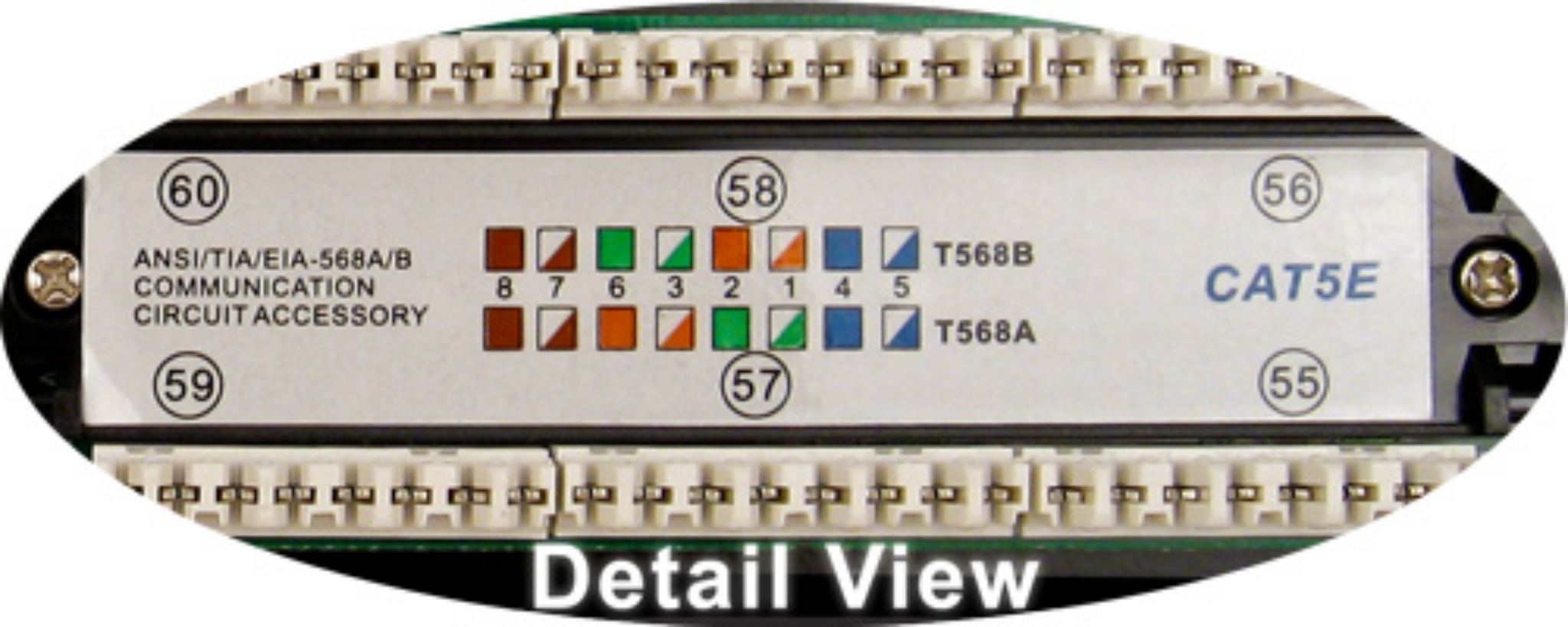

• Color-coded for T568A and T568B wiring schemes.
• Constructed from UL94-V-0 high-impact, fire-retardant ABS or PC material.
• Pair punch sequence enables a pair twist within 1/2 of termination.
• Beryllium copper contacts: 50 µ gold-plated pins over 100 µ nickel layer.
• Insertion life cycle: 750 cycles (minimum) / I.D.C. 250 cycles (minimum).
• Operating temperature: -40°C to +68°C.
