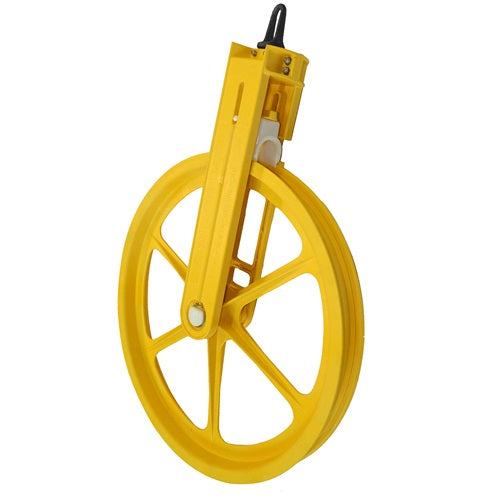

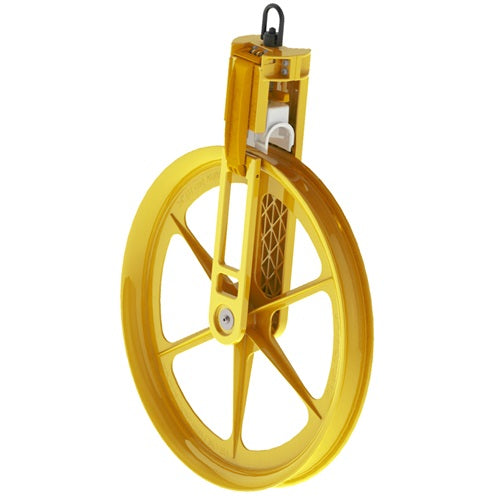

24 in Aerial Buddy Fiber Optic Sheave SHV-24

Product Information

Specification

Also Known As:
24 in Aerial Buddy Fiber Optic Sheave SHV-24, Jameson’s Aerial Buddy is designed to protect ADSS cable and other jacketed fiber during installation.

About :
Jameson’s Aerial Buddy is designed to protect ADSS cable and other jacketed fiber during installation. Ideal for use with jacketed cables 2″ or less in diameter and loads that don’t exceed 1600 lbs. It’s constructed with lightweight, reinforced polymer that weighs significantly less than aluminum and steel models; reducing installation fatigue and permitting one-man set up. The unit is lightweight, levels itself and designed to resist chemical, UV and corrosion. Features an easy latching mechanism for single-handed operation.

Specification :
Product Type : Fiber Optic Sheave
Part No : SHV-24

Features :
• Spring loaded cable guard (patented) eliminates delays caused by cable and pull tape derailing
• Lift hoist swivels 360o and rotates 180o for unrestricted mounting and maneuverability
• 2″ opening allows pulling grips to pass through easily
• Easy latching mechanism for single-handed operation
• High strength, impact resistant unit is more durable than aluminum
• Chemical, UV, corrosion resistant construction for longer life
Electrically insulated
• Self levels, strapping optional
• Weighs 40% less than lightest aluminum model
