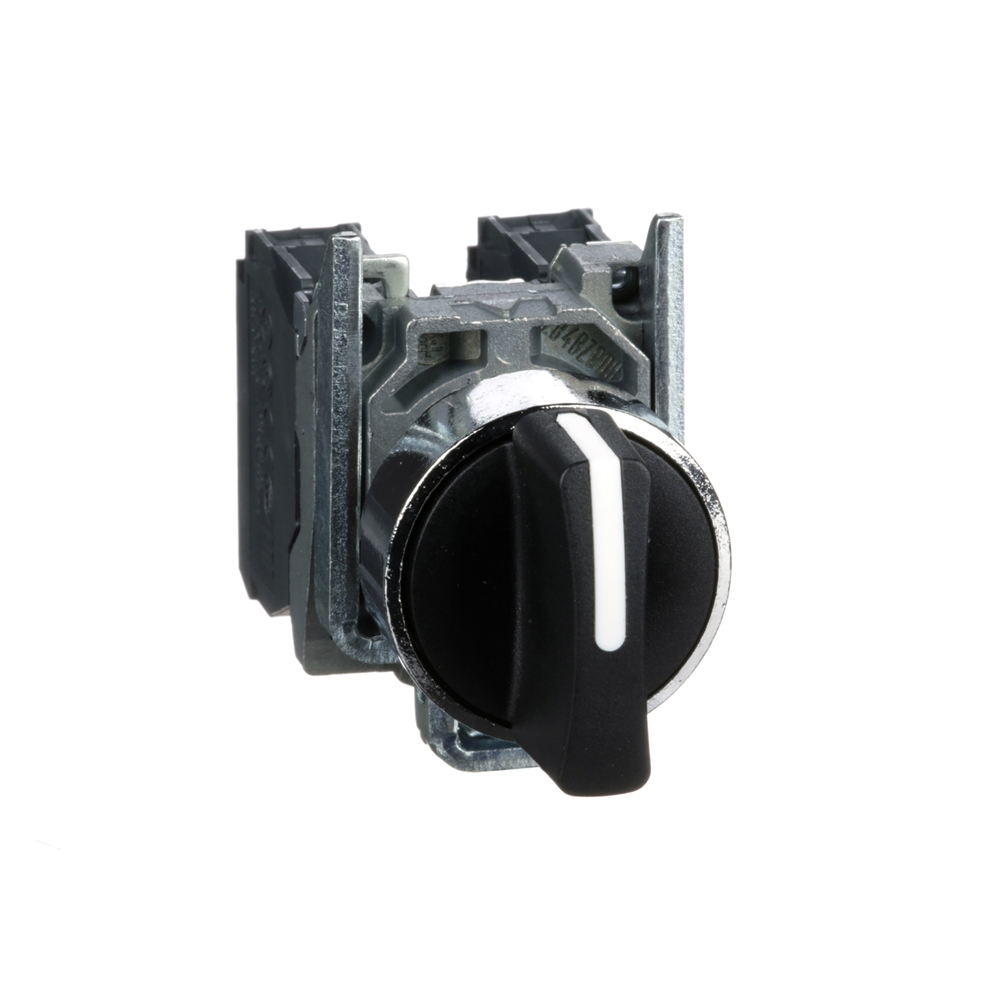

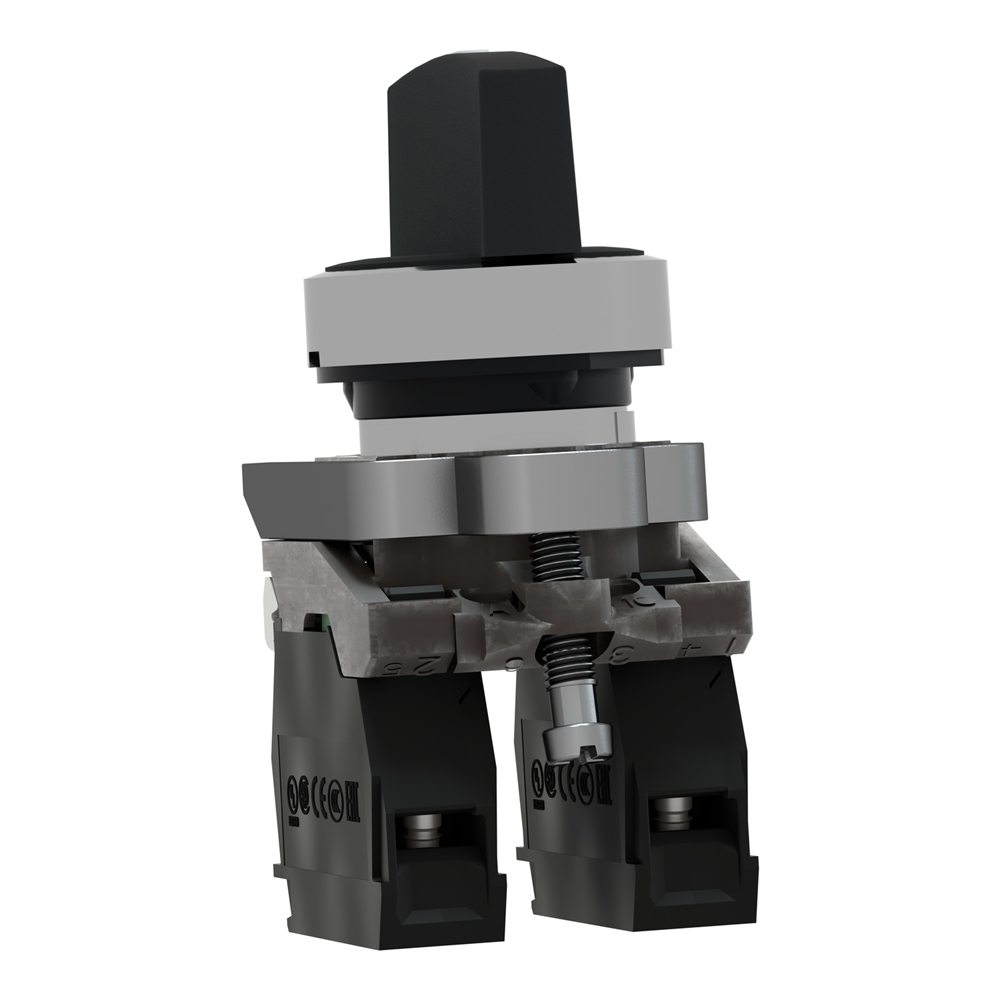

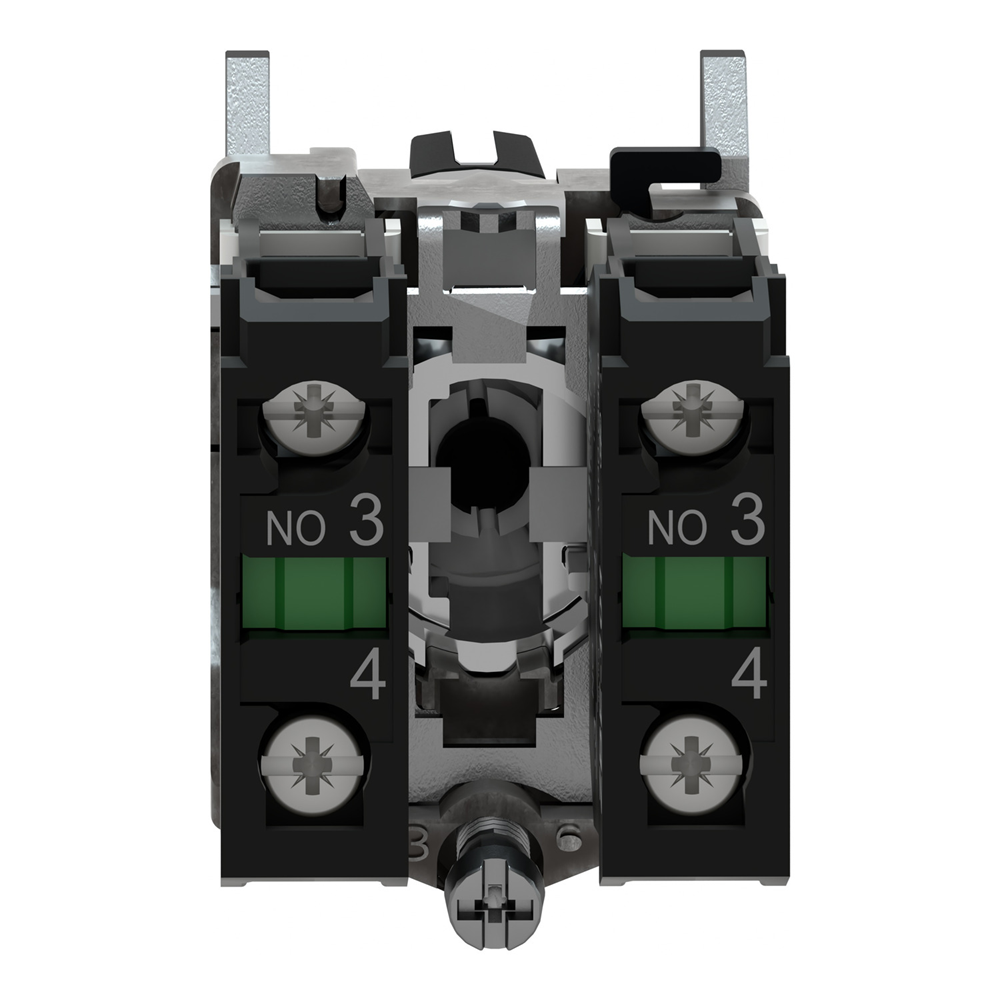

22mm Metallic Selector Switch 3-Position Panel Mount Short Lever 2NO Contacts

Product Information

Specification

The Harmony XB4 range of metal pushbuttons, switches, and pilot lights combines easy installation, flexibility, and durability to meet the needs of a wide range of industrial applications. This comprehensive product line is designed to deliver reliable performance while meeting the demanding requirements of industrial control and signaling systems.

Features :

• Robust illuminated and non-illuminated buzzers with water resistance ratings up to IP66, IP67, IP69, and IP69K for reliable performance in demanding environments.

• Flush-mounting design that meets market requirements for ergonomic operation and enhanced aesthetics.

• High-brightness, full-surface illumination for pushbuttons and selector switches, ensuring excellent visibility.

• Superior sealing protection with ratings up to IP66, IP67, IP68, IP69, IP69K, and Type 4X.

• High impact resistance with an IK06 rating for improved durability.

• Wide operating temperature range from -40°C to +70°C (-40°F to +158°F).

• Compliant with major international standards, including IEC, UL, CCC, EAC, and JIS.

• Marine-certified options available with approvals from BV, LROS, DNV, and GL.

• Emergency stop buttons designed to help minimize production downtime and improve operational safety.

• Dedicated solutions available for use in explosive atmospheres.

• Self-holding actuator function for easier and more secure installation.

• Integrated timer options provide safe and simple machine time adjustment.

• USB and RJ45 communication ports provide convenient and efficient PC or network connectivity.

• Three-phase pilot lights can be installed in a single 30 mm (1.181 in.) diameter mounting hole.

• Clearly identified and aligned hole positions on legend panels simplify installation.

• Adhesive legend panels allow quick placement and precise hole punching on operator interfaces.

• Helps reduce installation time by up to 75% compared with traditional hole alignment methods.

• Harmony pushbuttons are designed for long service life, supporting up to 10 million operating cycles.
