22/2 STRANDED BC CM

SKU: NNC2734X
Min Length: 1 FT
Max Length: 10000 FT
Price:
Regular price
$0.00 /FT
Sale price
$0.00 /FT
Shipping Cost Calculated at Checkout. Standard Lead Time is 1 to 6 Business Days.
Free Shipping: On orders above $1000
Quantity must be 1 or more

Enter the required footage in the quantity box - Cut to one length

Where are we? 4 Continents 8 Countries

Got any Questions?

Speak with a real person who will go out of their way to help you!

Call Us: 1-516-482-6313Text Us: 1-516-703-3460

Chat

Live Chat: Bottom Right Corner!

Email Us

info@nassaunationalcable.com

Product Information

Specification

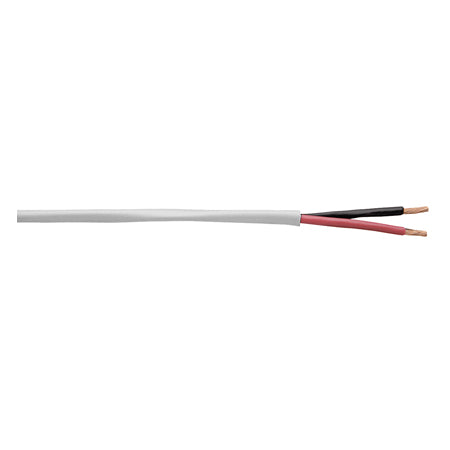

22 AWG Stranded 2 Conductor Cable Unshielded Non-Plenum

Applications:

Fire alarm wire 22 stranded CM is an electrical 22 AWG Stranded 2 Conductor Cable Unshielded Non-Plenum that is commonly used in Power limited circuits and communication cables for non-riser applications like Remote Control, Signaling, Security Systems, Communications, Single Line Telephone, Intercom/P.A. Systems.

Also Known As:

CMX cable, security cable, single line wire, single line cable, PVC cable, PVC wire, non-plenum cable, communications cable, communications wire.

Standards:

UL Type CM/CL2 - CMX Outdoor / cUL Type CM/FT1
NEC Articles 725 & 800
California State Fire Marshall
CSA Approved
Flame test
Restriction of hazardous substances (RoHS) Compliant


 Construction

Conductors:

This 2-conductor fire alarm cable complies with NEC Articles 800 and 725.

Insulation:

The Fire alarm wire 22 stranded CM has an FR Polypropylene Insulation.

 Jacket:

This type of wiring has a Pressure-extruded jacket that is more staple resistant than a tubed jacket

Conductor Size AWG        22
Number of Conductors           2
Stranding       7/30
Outer Jacket Thickness (inches)      0.006
Outside Diameter (inches)
     0.110
Weight (1000 ft.)
     11.1



    *Data provided on this page is subject to change based on different manufacturers' variances
    ** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
    In the case the material only comes in a predetermined color or doesn’t come with any color
