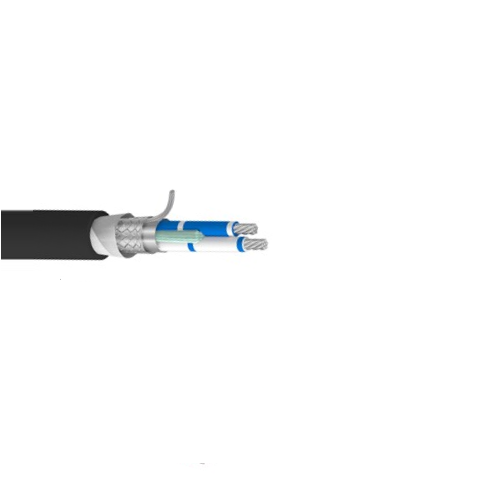

22 AWG 2C Stranded Tinned Copper Braid Shielded RS485 TEKwire PVC 300V Digital Data Cable

22 AWG 2C Stranded Tinned Copper Braid Shielded RS485 TEKwire PVC 300V Digital Data Cable

Allowable Ampacity for 22 AWG 2C Stranded Tinned Copper Braid Shielded RS485 TEKwire PVC 300V Digital Data Cable: 100 Amps

Applications:

This document establishes the specifications for a 2C (1 pair) cable EIA-RS485 data grade with a foil plus braid shield. For RS-485 as well as DMX-512 and other computer control applications.

Also Known as:

Data Cable, Digital Data Cable, RS-485 Cable, Braid Cable, Control Cable, DMX-512 Cable

Standards:

• EIA RS-485
• National Electric Code – Articles 725 and 800
• UL Standard 444
• UL Standard 13
• UL 1581

Codes & Listings:

• CM, PLTC
• C(ETL)US CM OR PLTC

Conductor:

Tinned Copper

Insulation Material:

Foam Polyethylene

Jacket Material:

PVC

Color Code:

Blue & White

Specification:

AWG Size: 22
Number of Conductor: 2
Conductor: Tinned Copper
Insulation Material: Foam Polyethylene
Nominal Insulation Thickness: 0.025 in.
Jacket Material: PVC
Nominal Jacket Thickness: 0.041 in.
Shield: Aluminum/Mylar Tape
Nominal Diameter: 0.281 in.
Capacitance: Cond to cond: 11.5 pF/ft , Cond-shield: 21 pF/ft
Nominal Impedance: 120Ω
Temperature Rating: -20°C to +60°C
Weight: 43 lbs. / 1,000 ft.
Part Number: B1P22TFOSTB
