22-16 AWG StrongHold Loose Piece Fork Red EV18-14FB-Q (Pack of 25)
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
| Fork Type | Standard |
| Product Type | Loose Piece Forks |
| Standards Met | UL Listed 20U0, E52164 |
| Stud Size | M6 |
| Maximum Metric Conductor Size (mm²) | 1 |
| Minimum Metric Conductor Size (mm²) | 0.5 |
| Sub Brand | StrongHold™ |
| Barrel Type | Funnel |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
| Base Material | Copper |
| Insulation Material | Vinyl |
| Barrel Length (In.) | 0.39 |
| Barrel Length (mm) | 9.9 |
| Finish/Coating | Tin-Plated |
| Color Code | Red |
| Overall Length (mm) | 21.1 |
| Overall Width (mm) | 9.4 |
| Seam Type | Butted |
| For Use With | KST2000A (Not Sold Through Panduit) |
| Part No. | EV18-14FB-Q |

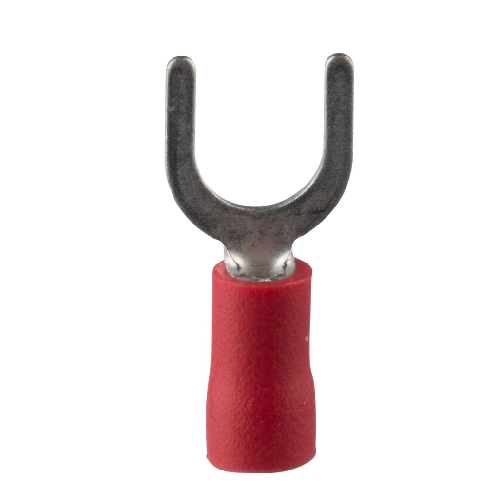

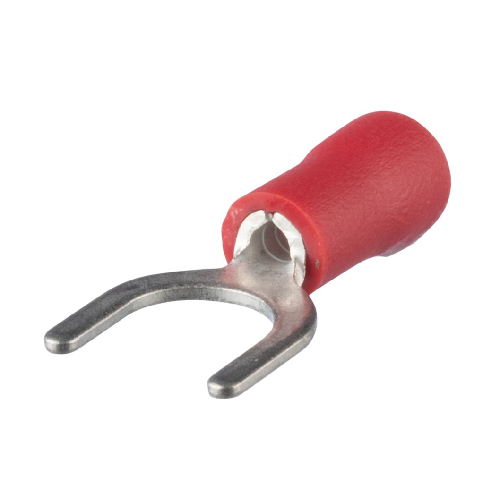

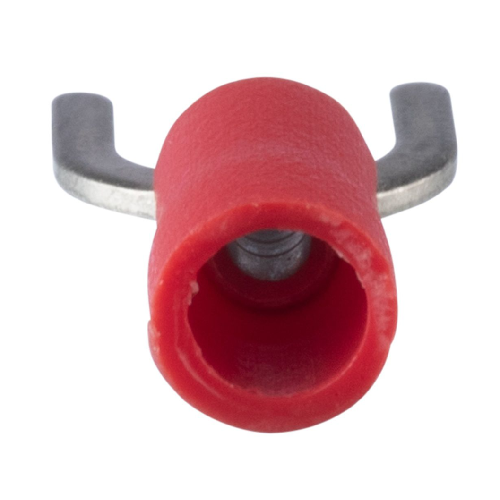

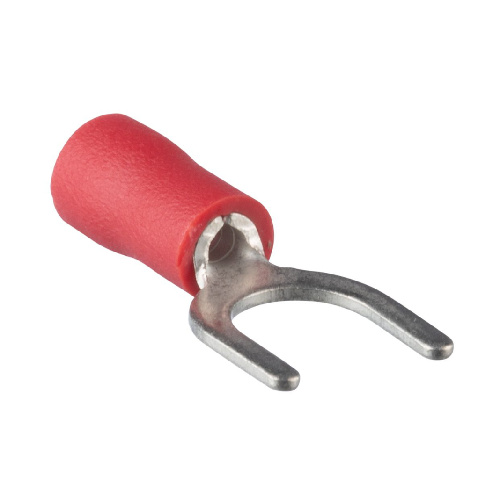

22-16 AWG StrongHold Loose Piece Fork Red EV18-14FB-Q
Description:
StrongHold EV18-14FB-Q Contractor Grade Insulated Fork Terminals are a reliable and economical option that withstand a wide range of general-purpose applications. The fork design provides for fast and easy installation, without the need to remove fastener. Accommodates 22-16 AWG, compatible with 1/4" Stud (M6), are red in color, and come in packages of 25.
