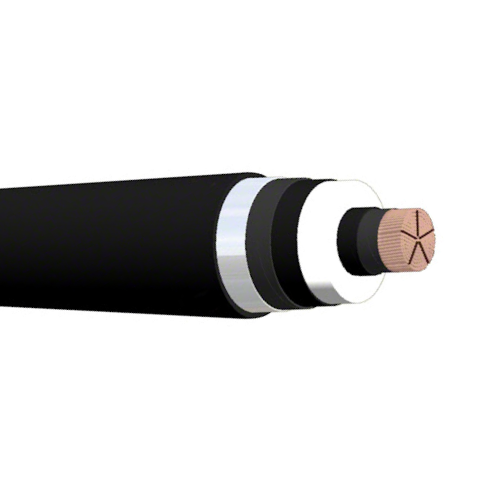

2000 MCM High Voltage Round Copper Cable Al Shield/Sheath XLPE Insulation HDPE jacket 138 kV

2000 MCM High Voltage Round Copper Cable Al Shield/Sheath XLPE Insulation HDPE jacket 138 kV

Application:

• Transmission and distribution circuits, in cities with high load densities. Also, for Industrial and Commercial installations.
• May be installed in wet or dry locations indoors or outdoors in conduit and underground ducts.

Also Known As:

2000 MCM High Voltage Cable, Aluminum Shield Cable, 2000 MCM HDPE Jacket, High Voltage Smooth Cable, 2000 MCM XLPE Shield/Sheath Cable, 2000 MCM Copper Smooth Aluminum Cable.

Standards:

• IEC 60840: Power cables with extruded insulation for rated voltages above 30 kV up to 150 kV.
• AEIC CS9: Specifications for extruded insulation power cables and their accessories rated above 46 kV through 345 kV.
• ICEA S-108-720: Standard for extruded insulation power cables rated above 46 kV to 345 kV.

Features:

• True triple vertical extrusion system for optimum insulation concentricity, and excellent
electric field control.
• Dry cure process.
• Closed handling of raw materials system to eliminate any contact with ambient, until extrusion process ends.
• Low dielectric losses.
• Metallic shield for ground connection.
• Sunlight resistant jacket.

Construction:

• Conductor: Uncoated soft annealed copper, Class B or Class 2 filled stranding compacted round or segmental as per ASTM B496 or IEC 60228.
• Semiconducting Tape: A semiconducting tape may be applied helically with an overlap, as required.
• Conductor Shield: Semiconducting crosslinked polyethylene
• Insulation: High quality, heat, moisture, ozone and corona resistant, crosslinked polyethylene (XLPE).
• Insulation Shield: Semiconducting crosslinked polyethylene.
• Water Barrier: Semiconducting water blocking tape, helically applied.
• Metallic Shield/Sheath: Welded smooth aluminum tape longitudinally applied over semiconducting water blocking tapes.
• Jacket: Black high density polyethylene (HDPE) sunlight resistant thermoplastic compound.

Specifications:

• Size: 2000 MCM
• Shape: Round
• Number of Strands: 85
• Conductor Diameter (In): 1.57
• Insulation Thickness (mil): 740
• Insulation OD (In): 3.21
• Metallic Sheath Thickness (mil): 60
• Diameter Over Sheath (In): 3.59
• Approximate Outside Diameter (In): 4.00
• Approximate Net Weight (lb/ft): 11.0
• Minimum Bending Radius (In): 82
• Maximum Pulling Tension (lb): 16,000
• Conductor Resistance dc @ 20 °C: 0.005
• Conductor Resistance dc @ 90 °C: 0.007
• Capacitance (pF/ft): 56.3
• Charging Current (A/kft): 1.69
