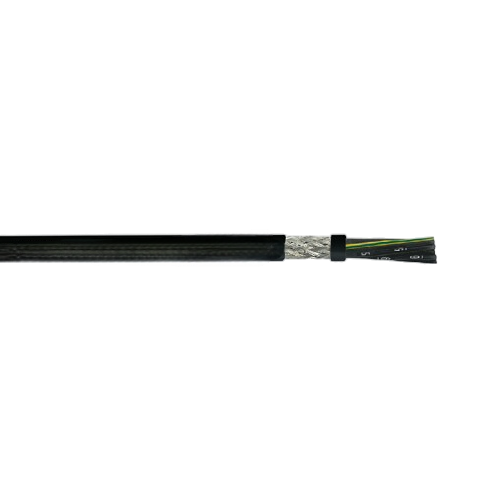

20 AWG 4C MEGAFLEX 15220 600-C Halogen free Flexible Control Cable

20 AWG 4C MEGAFLEX 15220 600-C Halogen free Flexible Control Cable

Applications:

For fixed installation or flexible application, with occasional not permanently recurring free movement without forced motionand without tensile stress, for high mechanical strain. As a measuring and control cable in tool machinery, conveyor belts and production lines, plant engineering, climate engineering,in foundries and steel mills. Especially suited for wind power plant and computer equipment. EMC = Electromagnetic compatibillity To optimize the EMC features we recommend a large round contact of the copper braiding on both ends. (€= The product is conformed with the EC Low-Voltage Directive 2006/95/EC.

Also Known As:

20 AWG 4C megaflex 600-c cable, halogen free flexible control cable, helukabel megaflex 600c, 600v control cable halogen free, oil resistant flexible cable, uv resistant control cable, flame retardant industrial cable, 20 AWG 4C flexible automation cable, halogen free shielded control cable, 20 AWG 4C 600v robotic control wire.

Technical Data:

Halogen-free flexible control cable to UL-Style 20234, UL-Std.758

Temperature range
flexing -30°C to +80°C
fixed installation -40°C to +80°C

Nominal voltage
U0/U 600/1000 V

Test voltage core/core
4000 V

Minimum bending radius
flexing 10x cable Ø
fixed installation 4x cable Ø

Flexibility
Alternate bending test acc. to DIN VDE 0473-396 / DIN EN 50396

Coupling resistance
max. 250 Ohm/km

Cable Structure:

• Bare copper, fine wire conductors, to DIN VDE 0295 cl.5, BS 6360 cl.5 and IEC 60228 cl.5
• Core insulation of halogen-free special polymer
• Core identification to DIN VDE 0293 black cores with continuous white numbering
• GN-YE conductor, 3 cores and above in the outer layer
• Cores stranded in layer with optimal lay-length
• Separating foil
• Tinned copper braided screening, coverage approx. 85%
• Outer sheath, halogen-free special polymer
• Sheath colour black (RAL 9005)
• with meter marking

Properties:

• Halogen-free
• Highly flame-retardant
• Resistant to oils and greases
• Resistant to UV and weathering
• Flexible, abrasion- and wear-resistant
• Ozone-resistant
• Recycleable

Tests:

• Flame test acc. to DIN VDE 0482-332-3-24, BS 4066 part 3, DIN EN 60332-3-24, IEC 60332-3-24 (previously DIN VDE 0472 part 804 test method C)
• Self-extinguishing and flame retardant acc. to DIN VDE 0482-332-1-2, DIN EN 60332-1-2/IEC 60332-1 (previously DIN VDE 0472 part 804 test method B)
• The materials used in manufacture are cadmium-free and contain no silicone and free from substances harmful to the wetting properties of lacquers
• Corrosiveness of combustion gases acc. to NF X 10-702
• Halogen-free according to DIN VDE 0482 part 267/ EN 50267-2-1/ IEC 60754-1 (equivalent DIN VDE 0472 part 815)
• Smoke density acc. to DIN VDE 0482 part 1034-1+2, DIN EN 61034-1+2/ IEC 61034-1+2, BS 7622 part 1+2 (previously DIN VDE 0472 part 816)
• Oil-resistant to DIN VDE 0473-811-404/DIN EN 60811-404
• hydrolysebeständig nach DIN EN 61234-1
• Ozone-resistant to DIN VDE 0473-811-403/DIN EN 60811-403

Note:

• G = with green-yellow conductor
• x = without green-yellow conductor
• unscreened analogue type: MEGAFLEX 600

Specification:

• Size : 20 AWG
• No. cores x cross-sec.mm² : 4 G 0,5
• Outer Ø app. mm: 8,1
• Cop. weight kg / km: 47,0
• Weight approx kg/km: 62,0
