2 X 4 Ohm 8" High-End Woofer Fiber Cone upto 8000 Hz 120 W GF 200 1330
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
| Rated power | 120 W |
| Maximum power | 180 W |
| Nominal impedance Z | (1) 4 Ohm (2) 8 Ohm (3) 2 Ohm |
| Frequency response | fu–8000 Hz |
| Mean sound pressure level | (1) 85 dB (1 W/1 m) (2) 88 dB (1 W/1 m) (3) 88 dB (1 W/1 m) |
| Opening angle (-6 dB) | 46°/4000 Hz |
| Excursion limit | +/-10 mm |
| Resonance frequency fs | (1) 34 Hz (2) 30 Hz (3) 35 Hz |
| Magnetic induction | 1.3 T |
| Magnetic flux | 930 µWb |
| Height of front pole-plate | 6 mm |
| Voice coil diameter | 38 mm |
| Height of winding | 18 mm |

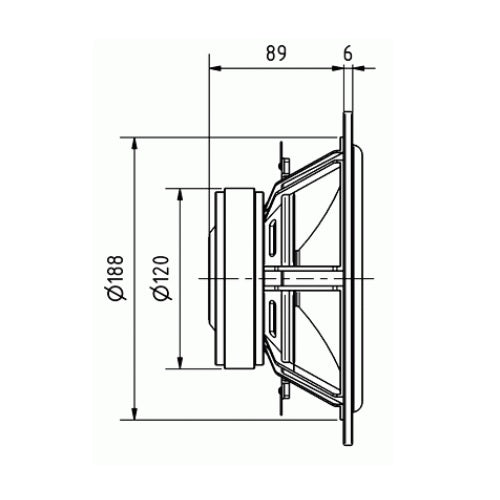

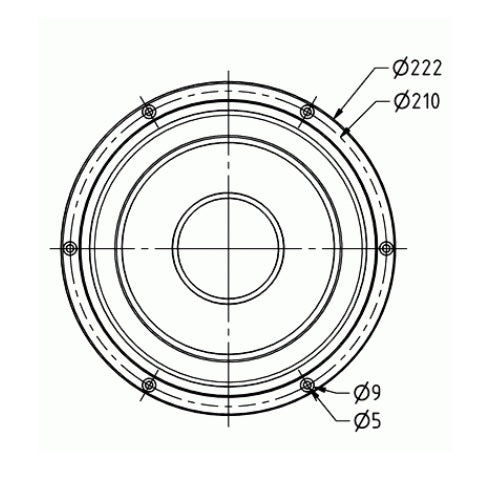

| Cutout diameter | 190 mm |
| D.C. resistance Rdc | (1) 2.9 Ohm (2) 5.8 Ohm (3) 1.4 Ohm |
| Mechanical Q factor Qms | (1) 4.51 (2) 4.12 (3) 4.33 |
| Electrical Q factor Qes | (1) 0.93 (2) 0.37 (3) 0.44 |
| Total Q factor Qts | (1) 0.77 (2) 0.34 (3) 0.39 |
| Equivalent volume Vas | (1) 62 l (2) 68 l (3) 57 l |
| Effective piston area Sd | 214 cm² |
| Dynamically moved mass Mms | 25 g |
| Force factor Bxl | (1) 4.6 Tm (2) 9.2 Tm (3) 4.6 Tm |
| Inductance of the voice coil L | (1) 0.4 mH (2) 1.1 mH (3) 0.3 mH |
| Connections | 4.8 x 0.8 mm (+)/2.8 x 0.8 mm (-) |
| Part Number | 1330 |
Description:
20 cm (8") High-End woofer with black glass fibre cone, solid aluminium die-cast basket and elastic rubber surround. Designed for multi-purpose applications due to 2 x 4 ohms double voice-coil, with excellent properties as 8 ohms drivers in series configuration.
The long stroke voice-coil in conjunction with the extended rear pole plate, the vented damper, the vented magnet and the capton voice-coil carrier guarantees long strokes and highest power handling. Possible connections: (1) one voice coil not connected (2) both voice coils in series (3) both voice coils in parallel.
*(fu: Lower cut-off frequency depending on cabinet).
Apllied to:
Classic 200 GF, Fontanella Sub, Nano Sub, Nimrod, Solitude, Vib 2000 GF.
Recommended Cabinets:
| Voulme/Principle | BR-Channel | fb |
| 30 l/bass reflex | BR 25.50 | 40 Hz |
| 50 l/bass reflex | BR 25.50 | 31 Hz |
| 70 l/bass reflex | BR 25.50 | 27 Hz |
