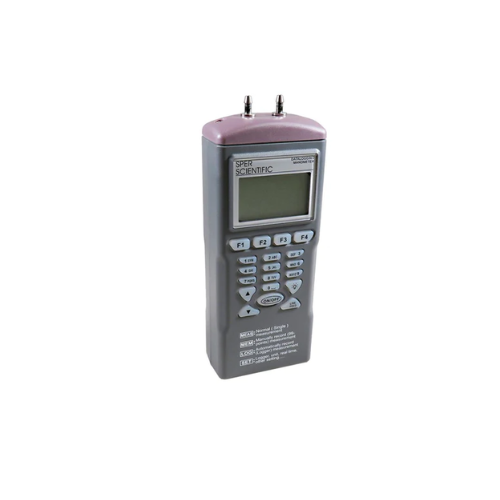

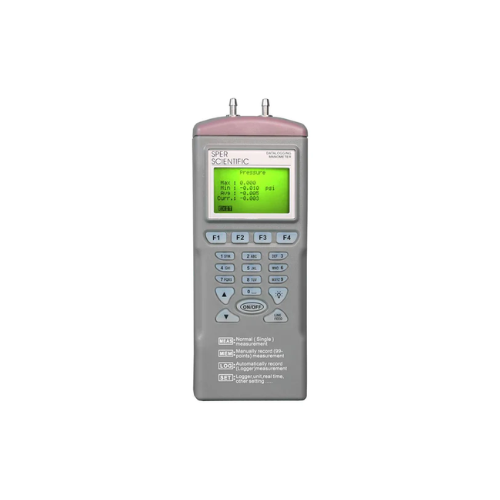

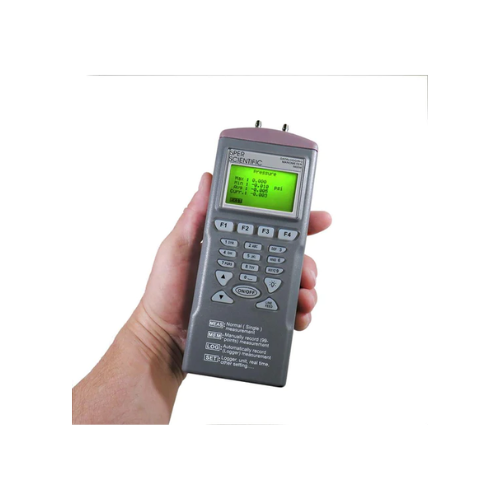

2 PSI Datalogging Manometers Upto 12,000 Readings
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
About:
• Automatically log up to 12,000 pressure readings with date and time stamps and download them to your computer, or manually record and review 99 readings on the meter’s display.
• Features a user-friendly menu, backlit dot matrix display, auto power off and a tripod screw.
• This portable meter is ideal for measuring low differential pressure in clean rooms, test and balance, medical equipment, HVAC, pneumatic systems, and computer peripherals.
• Reads gauge and differential pressure in 11 units of measure.

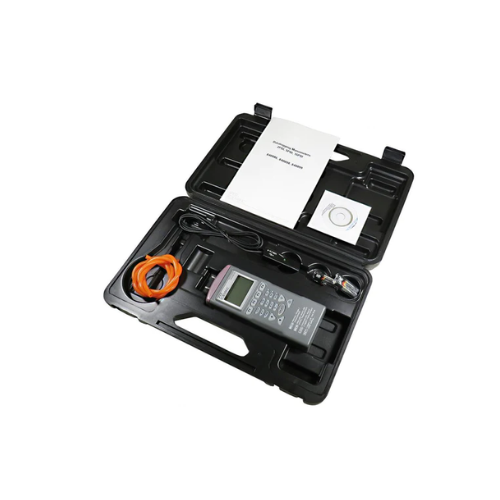

• Comes in a hard shell carrying case complete with 4 standard AAA batteries, pressure connection hose, instructions, computer cable and software.
Also Known as:
Sper Scientific Manometer, Datalogging Manometer, 2 PSI Manometer, Sper Scientific 840098.
Specification:
|
|
Range ± |
Resolution |
PSI |
2 |
0.001 |
In H₂O |
55.36 |
0.01 |
kPa |
13.79 |
0.01 |
Ft H20 |
4.614 |
0.01 |
In Hg |
4.072 |
0.01 |
Cm H20 |
140.6 |
0.1 |
mbar |
137.9 |
0.1 |
Bar |
0.138 |
0.001 |
mm of Hg |
103.4 |
0.1 |
Oz Inch2 |
32.48 |
0.01 |
Kg cm2 |
0.141 |
0.001 |
Maximum Pressure |
20 PSI |
|
Accuracy |
±0.3% fs at 25°C |
|
Repeatability |
±0.2% typ, Max ±0.5% fs |
|
Combined Linearity and Hysteresis |
±0.29 typ, Max ±1.0% fs |
|
Dimensions |
6-3/4" x 2-3/4" x 1-1/2" (208 x 70 x 40 mm) |
|
Weight |
9 oz |
|
*N.I.S.T Certificate of Compliance available- 840098C.
