2-Post White Aluminum 45RU Rack R2PWH

Product Information

Specification

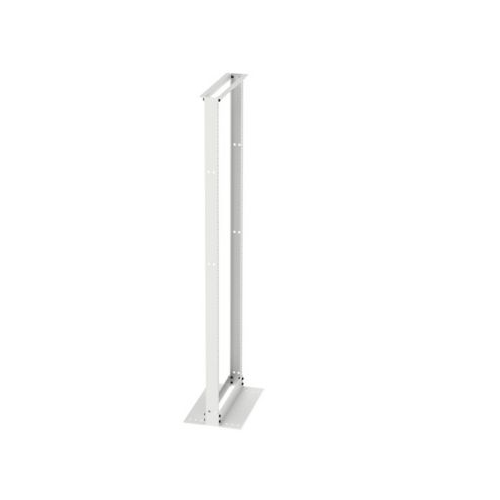

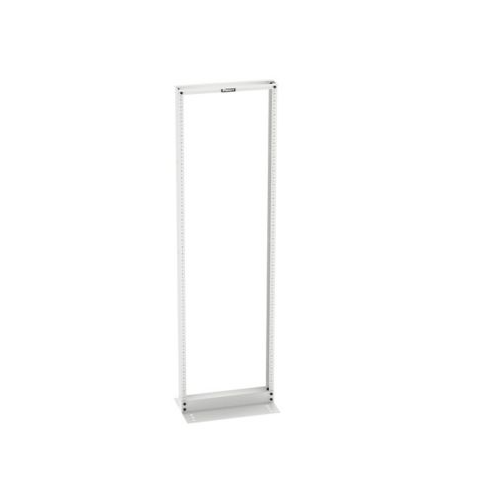

2-Post White Aluminum 45RU Rack R2PWH

About:

The 2-Post rack provides a reliable foundation for mounting telecommunications and data center equipment. The 84 inch tall rack accepts 19-inch wide equipment with mounting rails that have #12-24 EIA universal mounting hole spacing, and printed numbering from the bottom up. A range of cable managers and accessories work with the rack. The 3-inch deep channel rack is UL listed for 1,000 pounds and is made of extruded aluminum. The rack is 45 RU and white.

Also Known As:

2-Post Rack, Aluminum Material, Powder-Coated Finish, 45RU Rack, White Color

Specification:

Product Type	2-Post Rack
Note	Rack channel depth is 3" (76mm)
Material	Aluminum
Mounting Bolt Method	Threaded
For Use With	All Panduit 84" High Vertical Cable Managers and 19" Wide Horizontal Cable Managers
Extended Depth (In.)	15
Extended Depth (mm)	381
Overall Width (In.)	20.3
Overall Width (mm)	516
Extended Height (In.)	96.1
Extended Height (mm)	2.441
Number of Rack Units	45
Mounting Hole Thread Size	#12-24
Rail Number Direction	Bottom Up
Static Load Capacity (kg)	454
Static Load Capacity (lb)	1000
Color	White
Finish/Coating	Powder-Coated
Part No.	R2PWH
