2-Post Black Aluminum 45RU Rack R2PW

Product Information

Specification

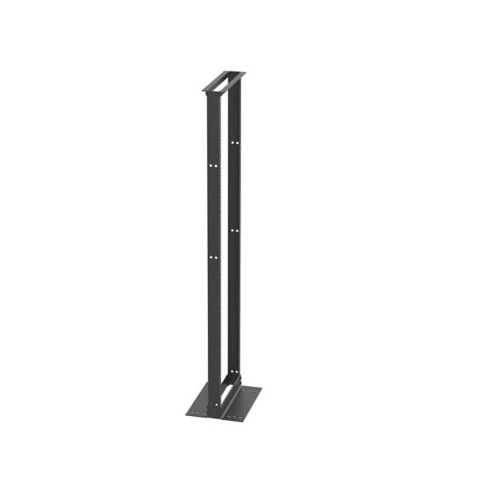

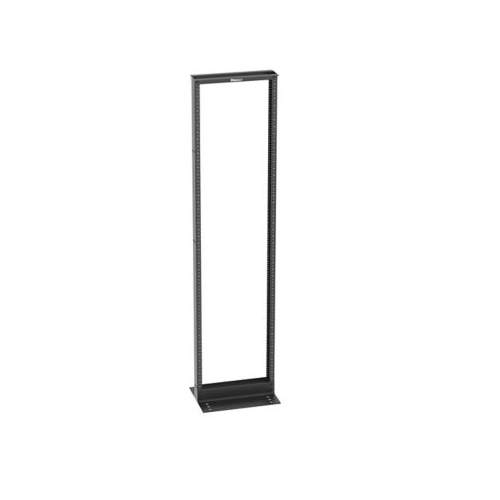

2-Post Black Aluminum 45RU Rack R2PW

About:

The 2-Post rack provides a reliable foundation for mounting telecommunications and data center equipment. The 84 inch tall rack accepts 23-inch wide equipment with mounting rails that have #12-24 EIA universal mounting hole spacing, and printed numbering from the bottom up. A range of cable managers and accessories work with the rack. The 3-inch deep channel rack is UL listed for 1,000 pounds and is made of extruded aluminum. The rack is 45 RU and black.

Also Known As:

2-Post Rack, Aluminum Material, Powder-Coated Finish, Rails Numbered Bottom Up, 45RU Rack, Black Color

Specification:

Product Type	2-Post Rack
Note	Rack channel depth is 3" (76mm)
Material	Aluminum
Mounting Bolt Method	Threaded
Extended Depth (In.)	15
Extended Depth (mm)	381
Overall Width (In.)	24.3
Overall Width (mm)	618
Extended Height (In.)	84
Extended Height (mm)	2.134
Number of Rack Units	45
Mounting Hole Thread Size	#12-24
Rail Number Direction	Bottom Up
Static Load Capacity (kg)	454
Static Load Capacity (lb)	1000
Color	Black
Finish/Coating	Powder-Coated
Part Features	Rails Numbered Bottom Up
Part No.	R2PW
