2-Port Surface Mount Box With CAT6 Jack (Pack of 50)

Product Information

Specification

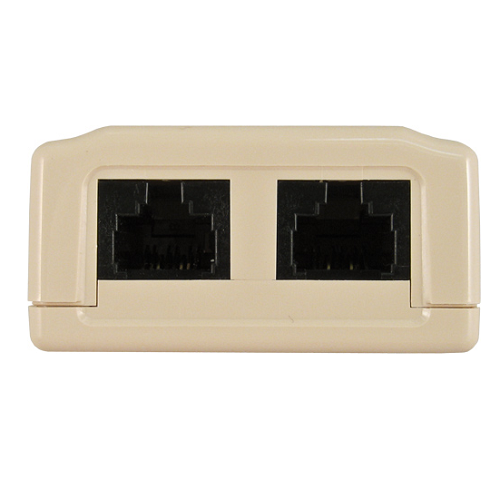

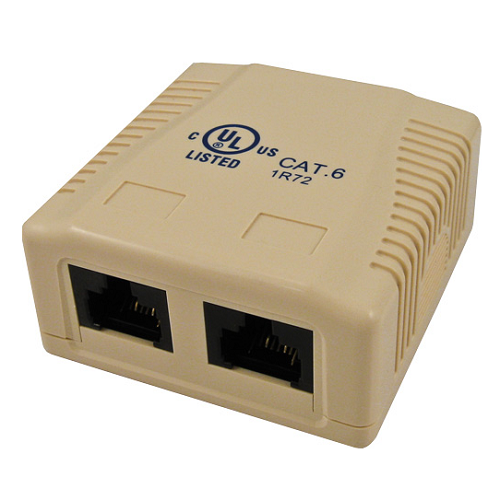

2-Port Surface Mount Box With CAT6 Jack

Description:

Universal 2-Port Surface Mount Box with Integrated CAT6 Jack, available in Ivory and White.

Features:

• UL 94 V-0 Fire Retardant
• Gloss finish
• UL listed
• High-impact ABS construction
• Screws, ties, and adhesive tape included
• Available in 1- or 2-port, in Ivory or White
• 110 & Krone type compatible

Material:

1. Case: ABS, UL 94V-10
2. RJ45 Jack Housing: PBT+Glass Fiber, UL 94V-0 (Black)
3. Contact Bracket: PBT+Glass Fiber, UL 94V-0 (Black)
4. RJ45 Jack Contact
Material: Phosphor Bronze with Nickel Plating
Finish: 50 micro-inches of Gold plated on plug contact area

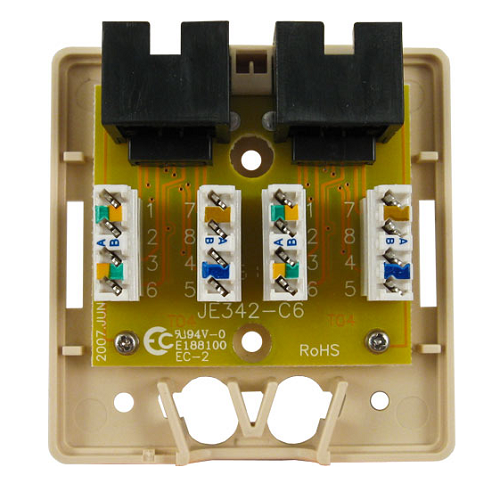

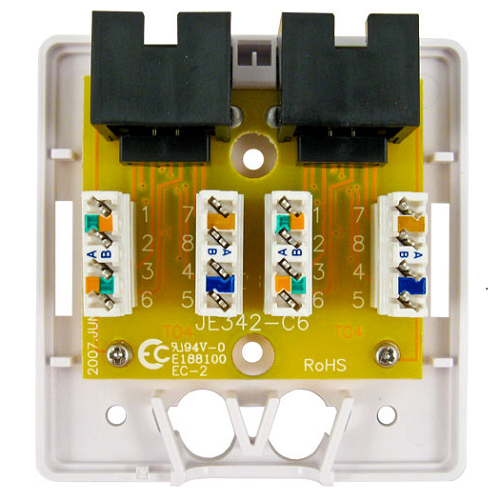

5. IDC
IDC Housing: PC+Glass Fiber, UL 94V-2
IDC Terminal: Phosphor bronze with tin plating.
6. Screw: M2.0x6.0xø3.3mm
7. PCB: FR4, UL 94V-0
8. Screw: M3.5x16.0xø6.0mm

Performance:

• T568A & T568B wiring printing on IDC.
• Insertion force: 20 N max (IEC 60603-7-4)
• Retention Strength: 7.7 kg between Jack and Plug
• Operating temperature: -10ºC to 60ºC
• (ISO/IEC 11801, ANSI/TIA/EIA 568 B.2)
