2” J-Hook Assembled To Hammer-on Flange CAT3224TZ (Pack of 50)

Product Information

Specification

About :

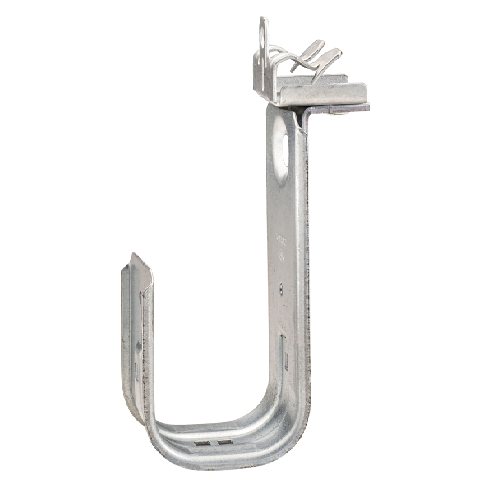

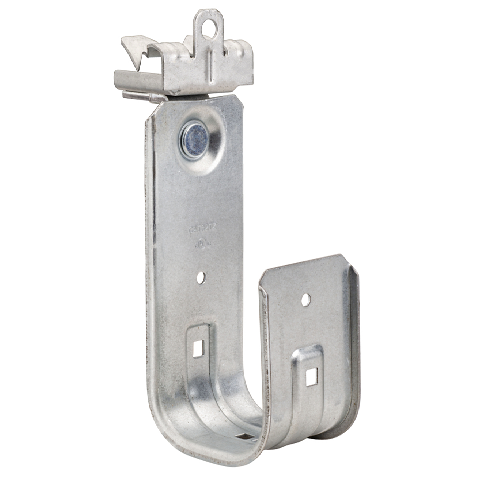

A 2" J-hook assembled to a hammer-on flange is a specific type of cable support system used in electrical and network cabling. The J-hook itself typically has a 2-inch nominal diameter, which is suitable for supporting a substantial number of cables without overcrowding or causing strain on the cables. The J-hook is usually designed with a smooth, rounded surface to prevent damage to the cables. It's often made from galvanized steel or other durable materials for strength and longevity, and sometimes it's coated with a material like polyethylene for additional cable protection. The hammer-on flange allows for easy attachment to structures. This flange is designed to be hammered onto the edge of a beam or other structural element, providing a secure and stable base for the J-hook. It's typically compatible with a range of flange thicknesses, often from 1/8" to 1/4". These J-hooks are designed to support a significant weight, but it's important to check the specific load capacity to ensure it meets the requirements of your application.

Also known as:

Beam Clamp J-Hook, Flange-Mounted Cable Support Hook, J-Hook Cable Hanger, Cable Support Hook with Hammer.

Specification:

Material : Spring Steel/Geoseal
Size : 2"
UPC : 751338042858
Part Number : CAT3224TZ

Features:

• Hanging and Supports
• J- Hooks are designed with round edges to provide proper bend radius
• Alternative cable management solution to complex cable trays
• Bottom mount rotates 360 degrees for easy positioning of J-Hook
