2 Fiber Single Mode Reduced Water Peak Universal Drop FTTP Optical Fiber Cable 6U0023101

Product Information

Specification

About :

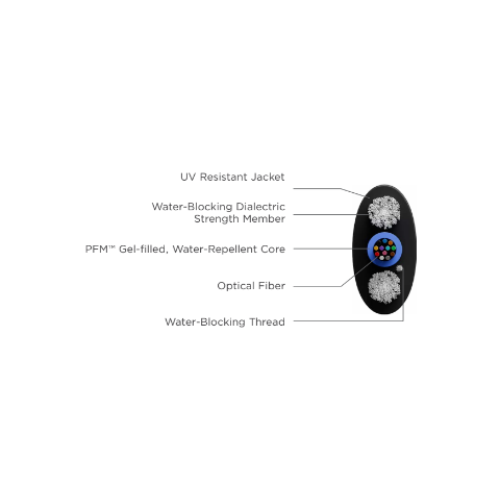

Universal Drop FTTP offers the most flexible solution for fiber to the premise  applications. This all dielectric cable requires no grounding or bonding. The small profile reduces cost and increases both ease of use and access to small conduits. This durable design incorporates two dielectric rigid rods for tensile and crush protection, bracketing a single enhanced loose tube containing up to 24 optical fibers and PFM gel. A black, weather resistant jacket completes the cable construction.

Strength Members: Water-blocking dielectric strength members placed parallel to single loose tube, one on each side, to provide necessary longitudinal strength.

Also Known as :

2 Fiber Cable, RWP Singlemode Cable, Single Mode Fiber Cable, FTTP 2 Fiber Cable, FTTP Universal Drop Cable.

Standards Compliance:

• Telcordia GR-20-CORE
• RDUP PE-90 Designation 570Q
• RoHS-compliant

Applications:

• Drop cables
• Broadband network
• Local loop
• Fiber to the premise

Benefits:

• Maximum bandwidth for FTTP business, etc.
• Aerial or direct bury
• Eliminates bonding and grounding
• Non-sticky gel reduces installation time and labor cost
• Excellent crush resistance

Features:

• Available with up to 24-fiber
• Universal design
• Dielectric
• PFM gel
• Dielectric rods
• Length marks are printed in both sequential feet and meters

Specifications:
