2.8 mm Dia Riser 2 F Single-mode Zipcord Tight-buffered Cable 002E51-31131-24

About:

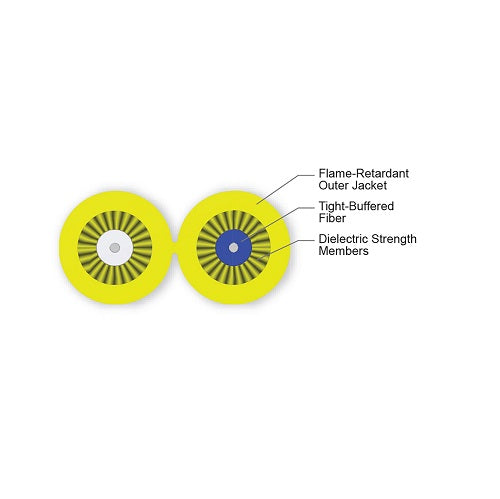

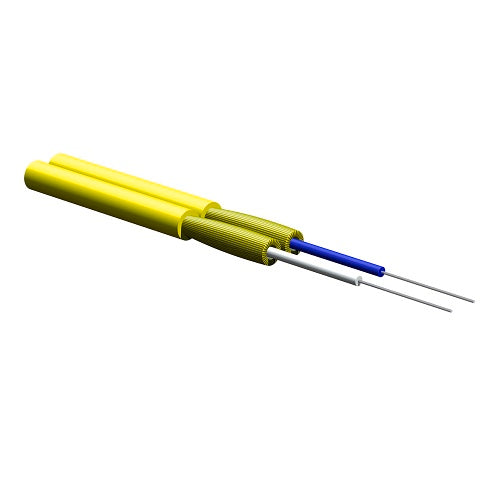

Corning zipcord cables are designed for interconnect applications, with two 900-μm buffered fibers surrounded by aramid yarn strength members and a flame-retardant jacket. This cable offers mechanical durability and flame resistance that meet the National Electric Code® (NEC) Article 770 requirements. The cable is available in 12 different jacket colors—blue, orange, green, brown, slate, white, red, black, yellow, violet, rose, and aqua. The color-coded jacket allows for easy visual identification of the cables. The standard jacket color will be determined by the dominant fiber type in the cable and will use the standard part numbers shown here.

Specifications:

Product Number: 002E51-31131-24
EAN Code: 4056418191584
Environment: Indoor
Cable Type: Tight-Buffered
Product Type: Interconnect
Fiber Category: Single-mode (OS2)
Flame Rating: Riser (OFNR)
Application: General Purpose Horizontal,  Vertical Riser
Fiber Count: 2
RoHS: Free of hazardous substances according to RoHS 2011/65/EU
Outer Jacket Color: Yellow
Outer Jacket Material: Flame-retardant
Tensile Strength Elements and/or Armoring—Layer 1: Dielectric strength members
Number of Subunits: 2
Tight Buffer Color: Blue, White
Flame Rating: Riser (OFNR)
Fiber Name: SMF-28e+ fiber
Fiber Type: Single-mode
Performance Option Code: 31
Maximum Attenuation: 0.4 dB/km / 0.4 dB/km / 0.4 dB/km
Wavelengths: 1310 nm / 1383 nm / 1550 nm
Fiber Category: G.652.D

Features:

• Mechanical durability

• All-dielectric strength member
