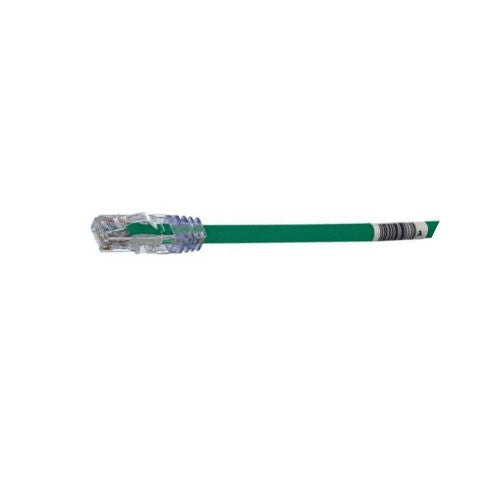

2.5 Meter 24 AWG UTP Patch Cord Green UTP6AX2.5MGR
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
About:
• The TX6A 10Gig Cat 6A UTP Patch Cord is a 2.5-meter, 0.250-inch (6.4mm) diameter, green cord constructed from 24 AWG unshielded twisted pair (UTP) solid conductors and housed in a CM-rated cable.
• It features high-performance modular plugs and solid foil tape to reduce alien crosstalk, ensuring dependable 10 Gb/s data transmission.
• The cord is equipped with a tangle-free latch to prevent snags and ensure quick release, making moves, adds, and changes more efficient.
• Enabled with RapidID technology, it includes pre-installed barcodes for simplified port mapping and management using RapidID software
Also Known As:
Patch Cord, Patch Cable, Ethernet Cable, Network Cable, LAN Cable, Twisted Pair Cable, UTP Copper Patch Cord.
Specification:
| Product Type | Patch Cord |
| Application | (1) 10GBASE-T Ethernet (2) Data center I/O Consolidation (3) Data center server virtualization (4) Backbone aggregation (5) Parallel processing and high speed computing |
| Conductor Gauge (AWG) | 24 |
| Sub Brand | Pan-Net |
| Performance Level | Category 6A |
| Conductor Type | Solid |
| Cable Construction | U/UTP |
| Patch Cord Type | Unshielded |
| Plug Housing Material | Polycarbonate |
| Jacket Material | Polyvinyl Chloride |
| Connector 1 Type | Modular Plug |
| Connector 2 Type | Modular Plug |
| Overall Length (m) | 2.5 |
| Nominal Cable Outside Diameter (mm) | 6.4 |
| Wiring Scheme | T568B |
| Maximum Operating Temperature (°C) | 60 |
| Minimum Operating Temperature (°C) | -10 |
| Color | Green |
| Flammability Rating | CM |
| Plug Type | 8 Position |
| UPC |
613056774858 |
Features:
• 100% performance tested confidence that each patch cord delivers specified performance
• Flexible cable design improved cable management in high density applications enabling easier installations
• Center de-embedded plug performs in center of ANSI/TIA-568.2-D component range ensuring interoperability and superior performance
• Integral pair manager optimizes performance, consistency and reliability by reducing untwist at plug
• Patented tangle-free latch - prevents snags and provides easy release, saving time and providing reliability on frequent moves, adds, and changes
• Slender strain relief boot - provides easy access in high density applications
Download PDF Spec Sheet
