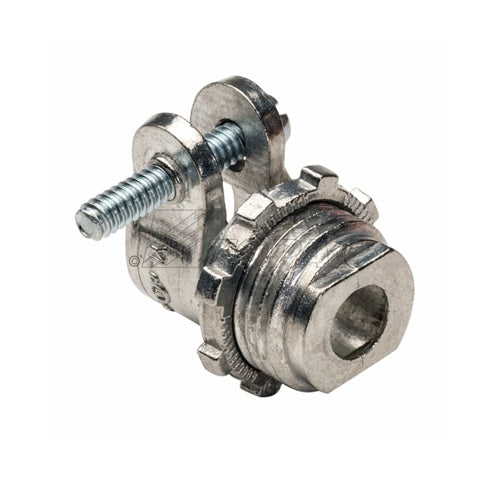

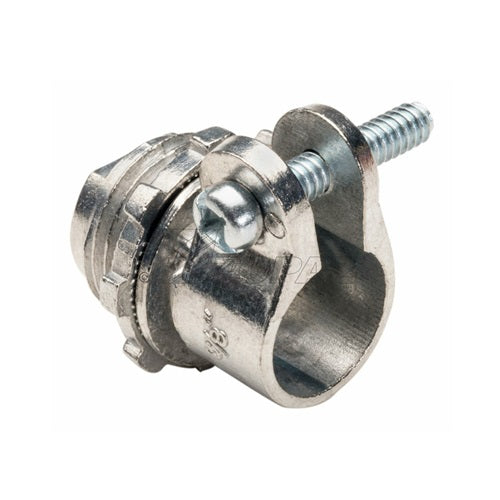

2-1/2" Straight Squeeze Flex Connectors With Zinc Die Cast 157 (Pack of 10)

Product Information

Specification

2" Straight Squeeze Flex Connectors With Zinc Die Cast

Description

2-1/2" Straight Squeeze Connectors With Insulated Throat. This measurement is important for ensuring compatibility with other pipes, fittings, or components in the plumbing or electrical system.

Features

• Squeeze-type straight
• Available with insulated throat

Application

• Indoor use only.
• In a dry location, use it to connect flexible metallic conduit and steel AC cable to a steel outlet box, load center, or other metal enclosure.
• The 3/8" can also be used with steel and aluminum MC cable.
• 3/8" size fits 1/2" knockout.
• Suitable for: 3/8" steel flexible conduit, #14/2 metal conduit, and #4–2 wire steel armored cable; 3/4" steel flexible metal conduit and #6–3 wire steel armored cable; 1" steel and reduced wall steel flexible metal conduit and #2–2 wire steel armored cable; and 1-1/4"–4" steel flexible.

Certifications

• UL Standard: UL 514B
• Fed. Spec: W-F-406E, W-F-406D
• NEMA: FB 1-2014
