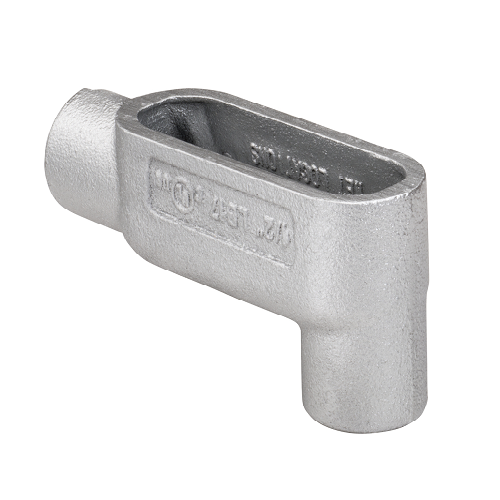

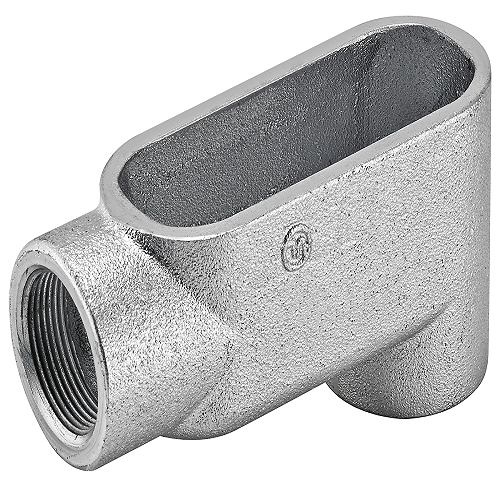

2-1/2" Form 7 Gray Iron LB Type Conduit Bodies LB7G7 (Pack of 2)

Product Information

Specification

About :

The "2-1/2" refers to the size, indicating that this conduit body is designed to accommodate 2-1/2 inch diameter electrical conduits. The "LB" type suggests the shape and function - LB conduit bodies are typically used to change the direction of conduit runs and provide easy access for wire pulling and maintenance. Made from gray iron, this conduit body is durable and suitable for heavy-duty applications. Gray iron is known for its good compression strength and resistance to deformation. They often come with a cover and a gasket to protect the internal connections from dust, moisture, and other environmental factors. Look for certifications like UL (Underwriters Laboratories) or CSA (Canadian Standards Association) to ensure compliance with safety standards.

Also known as:

2-1/2 Inch Elbow Conduit Body, FM 7 Grade, Gray Iron 2-1/2" LB-Shape Conduit Fitting, FM 7 Cast Gray Iron 2.5" LB Conduit Body, 2-1/2" LB Gray Iron Electrical Conduit Body.

Specification:

Material : Zinc Plated Gray Iron
Height : 4.3 Inch
Width : 5.3 inch
UPC : 751338869110

Features:

• Threaded LB type
• NPT tapered hubs
• NEMA FB 1/NEMA 3R raintight when installed with cover and gasket
• Suitable for Class 1 Div.2 hazardous locations when installed according to NEC 2014 501.10(B)(4)
