2.0 mm Dia Single-mode Riser 2 F Reel In A Box Zipcord Tight-Buffered Cable 002E51-31331-B4

Product Information

Specification

About :

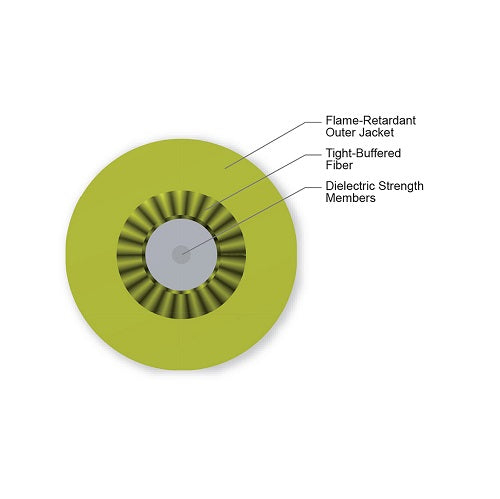

Reel in a Box is Corning's innovative packaging solution for small reels of fiber optic cable in all inside plant applications, such as collocation data centers and wireless projects. This packaging solution provides features that enable our customers greater efficiencies than before. Corning zipcord cables are designed for interconnect applications. Two 900 μm buffered fibers are surrounded by aramid yarn strength members and a flame-retardant jacket. This cable design offers mechanical durability and flame resistance that meet the requirements of the National Electrical Code (NEC) Article 770.

Specifications :

Product Number : 002E51-31331-B4
EAN Code : 4056418154428
Environment : Indoor
Cable Type : Tight-Buffered
Product Type : Interconnect
Fiber Category : Single-mode (OS2)
Flame Rating : Riser (OFNR)
Application : General Purpose Horizontal,  Vertical Riser
Fiber Count : 2
RoHS : Free of hazardous substances according to RoHS 2011/65/EU
Outer Jacket Color : Yellow
Outer Jacket Material : Flame-retardant
Tensile Strength Elements and/or Armoring - Layer 1 : Dielectric strength members
Number of Subunits : 2
Tight Buffer Color : Blue, White
Flame Rating : Riser (OFNR)
Fiber Code : E
Fiber Name : SMF-28e+ fiber
Fiber Type : Single-mode
Performance Option Code : 31
Maximum Attenuation : 0.4 dB/km / 0.4 dB/km / 0.4 dB/km
Wavelengths : 1310 nm / 1383 nm / 1550 nm
Fiber Category : G.652.D

Features :

• “Countdown” print indicates available cable remaining on the reel providing easier inventory management

• Stackable boxes make storage more manageable

• Smaller reel offerings mean smaller cable lengths than would normally be available

• Cable cutting at Corning lowers operating expenses for our distributors and end users
