2/0 AWG Pan-Term Covered Single Wire Ferrules FSD89-27-Q (Pack of 25)
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
| Product Type | Covered Single Wire Ferrules |
| Standards Met | DIN 46228, CSA C22.2 No. 291-14, UL 486F, cULus 486F |
| Ferrule Type | Single Wire Standard |
| Cover Material | Polypropylene |
| Sub Brand | Pan-Term® |
| Copper Conductor Size | 2/0 |
| Base Material | Copper |
| Pin Length (mm) | 27 |
| Maximum Copper Conductor Size (AWG) | 2/0 |
| Minimum Copper Conductor Size (AWG) | 2/0 |
| Finish/Coating | Tin-Plated |
| Color Code | Yellow |
| Overall Length (mm) | 44 |
| For Use With | CT-3001 (CD-2001-F89), CT-3001/ST (CD-920-F89), CT-3001/CCP (CD-920-F89), CT-930LPCH (CD-920-F89) |
| Part Features | Polypropylene insulation housing conforms to DIN color requirements Meets DIN, UL and CSA standards for single wire containment Funnel entry for faster insertion and lower installed cost Designed with a seamless barrel to contain loose wire strands for superior terminations Eases insertion of wire into terminal block Suitable for limited space panel applications Multiple pin lengths available for a variety of terminal blocks |
| Part No. | FSD89-27-Q |

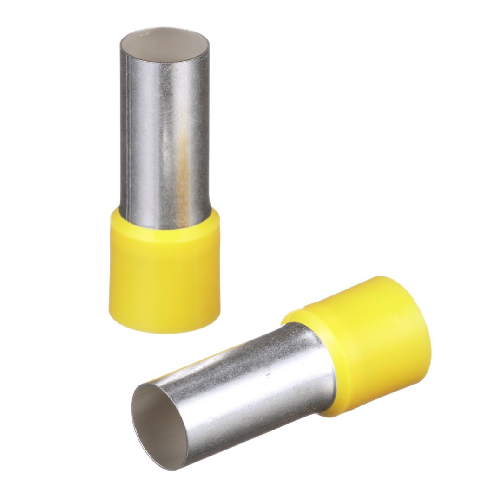

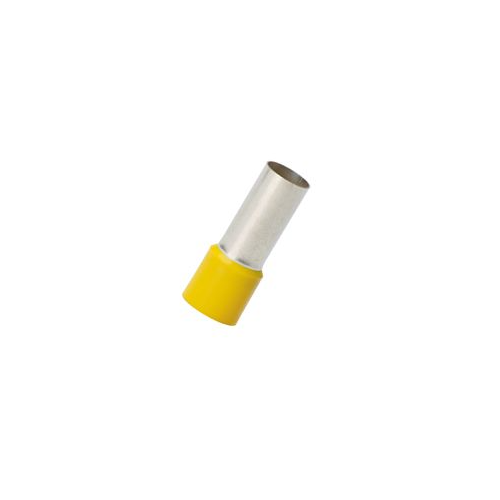

2/0 AWG Pan-Term Covered Single Wire Ferrules FSD89-27-Q
Description:
Polypropylene insulated ferrules single wire yellow DIN end sleeve, 2/0 AWG (70mm²) Wire Size, 1.06 (27.0mm) Pin Length.
