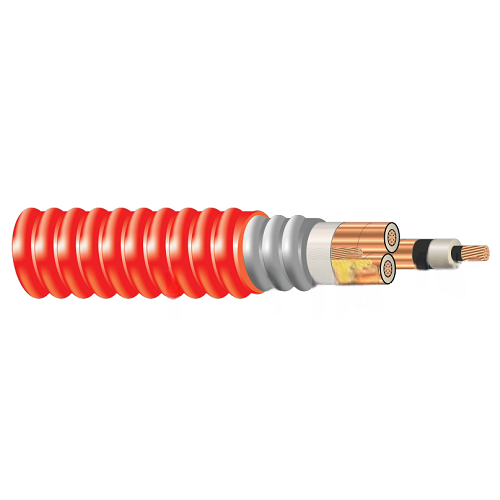

2/0 AWG 3C Type MV -105 Copper 15kV NLEPR Insulation 133% IL ARMOR-X Red PVC Jacket

2/0 AWG 3C Type MV -105 Copper 15kV NLEPR Insulation 133% IL ARMOR-X Red PVC Jacket

Application:

The 15KV ARMOR-X are armored cables for use in wet and dry areas, conduits, ducts, troughs, trays, direct burial, and where superior electrical properties are desired. These cables are capable of operating continuously at the conductor temperature not in excess of 105°C for normal operation, 140°C for emergency overload, 250°C for short circuit conditions, and -50°C for cold bend. For uses in Class I, II, and III, Division 1 and 2 hazardous locations per NEC Article 501, 502, and 503. Rated for 1000 lbs./FT maximum sidewall pressure.

Also Known As:

2/0 AWG 3C MV-105 power cable, Three conductor 15kV cable, Copper 15kV conductor, NLEPR insulation cable, 133% insulation level cable, 2/0 AWG 3C ARMOR-X shielded cable, Red PVC jacket MV, 15kV armored cable, 2/0 AWG 3C Type MV-105 with ARMOR-X, Medium voltage power cable.

Standards:

• ASTM B3 Soft or Annealed Copper Wire
• ASTM B8 Concentric-Lay-Stranded Copper Conductors
• ASTM B33 Standard Specification for Tin-Coated Soft or Annealed Copper Wire
• ASTM B496 Compact Round Concentric-lay-standard copper
• UL 1072 Medium-Voltage Power Cables
• UL 1685 FT4 Vertical-Tray Fire Propagation and Smoke Release Test
• UL 1685 Vertical-Tray Fire Propagation and Smoke Release Test
• ICEA S-93-639 (NEMA WC 74) 5-46 KV Shielded Power Cable
• ICEA S-93-639 (NEMA WC 74) 5-46 KV Shielded Power Cable
• IEEE 1202 FT4 Flame Test (70,000) BTU/hr Vertical Tray Test
• AEIC CS-8 Specification for extruded dielectric shielded power cables rated for 5 through 46KV (Qualification Test Requirements)
• Made in America: Compliant with both Buy American and Buy America Act (BAA) requirements per 49 U.S.C. § 5323(j) and the Federal Transit Administration Buy America requirements per 49 C.F.R. part 661.

Construction:

• Conductor: Class B compressed stranded bare copper per ASTM B3 and B8 (Tinned Copper per ASTM B33 optional)
• Conductor Shield: Semi-conducting cross-linked copolymer
• Insulation: 220 Mils No Lead Ethylene Propylene Rubber (NL-EPR) 133% Insulation Level
• Insulation Shield: Strippable semi-conducting cross-linked copolymer
• Copper Tape Shield: Helically wrapped 5 mil copper tape with 25% overlap
• Grounding Conductor: Class B compressed stranded bare copper ground per ASTM B3 and B8 (Tinned Copper per ASTM B33 optional)
• Filler: Wax paper filler
•  Binder: Polypropylene tape
• Armor: ARMOR-X Continuous Corrugated Welded Aluminum Armor
• Overall Jacket: Polyvinyl Chloride (PVC)

Specifications:

• Size: 2/0 AWG
• Number of Conductor: 3 + 1G
• Number of Strands: 19
• Diameter Over Conductor (inch):  0.405
• Diameter Over Insulation (inch):  0.884
• Diameter Over Insulation Shield (inch):  0.944
• Ground No. x AWG:   1x4
• Diameter Over Armor (inch):  2.550
• Jacket Thickness (mil):  75
• Approx. OD (In):   2.700
• Copper Weight lb/1000ft: 1593
• Approx. Weight (Lbs/1000'Ft):  3639
• Min Bending Radius (In):  18.9
• DC Resistance @ 25°C Ω /1000ft:  0.081
• AC Resistance @ 90°Ω /1000ft: 0.102
• Inductive Reactance @ 60HzΩ/1000ft:  0.042
• Allowable Ampacity In Duct 90/105°C Amp :  220/235
• Allowable Ampacity In Air 90/105°C Amp:  245/275
