1U 2 Adapter Panel Capacity Fixed Top Load Fiber Patch & Splice Panel FB23-4498R2

Product Information

Specification

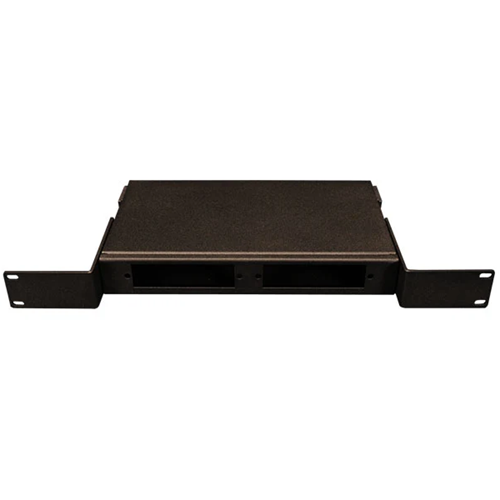

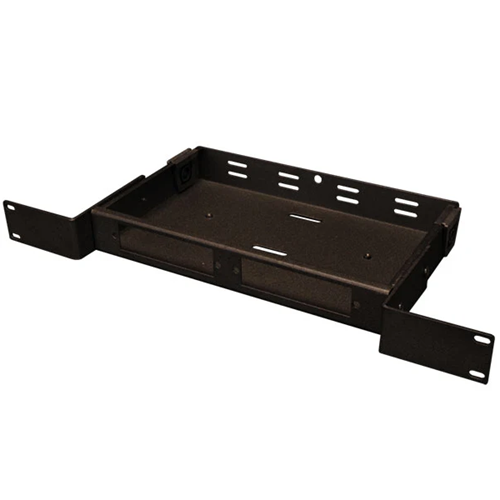

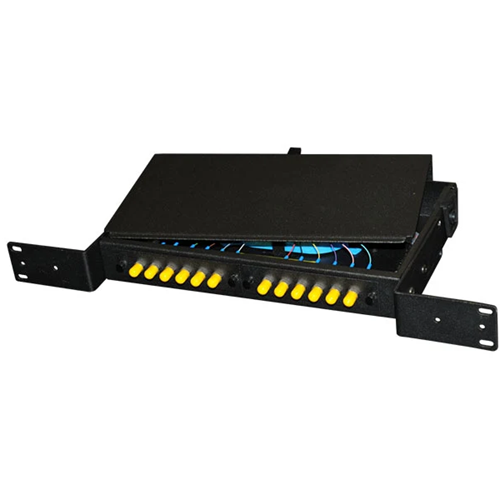

The 1U Fixed Top-Load Fiber Patch and Splice Panel is a compact rack-mount fiber distribution unit designed for fiber termination, patching, and splicing applications. The enclosure features a fixed top-load design with a slide-off cover, two fixed bulkhead positions, and two captive grommets for convenient cable entry. It accommodates two adapter panels and one 12-fiber splice tray, providing capacity for up to 12 fiber splices. The panel is compatible with standard 19" or 23" racks and includes universal mounting supports for flexible installation.

Features :

• 1U Rack-Mount Design: Compact enclosure designed for efficient use of rack space.

• Fixed Top-Load Configuration: Provides easy access to fiber connections and splice components.

• 2 Adapter Panel Capacity: Holds up to two fiber adapter panels.

• 12-Splice Capacity: Accommodates one 12-fiber splice tray, sold separately.

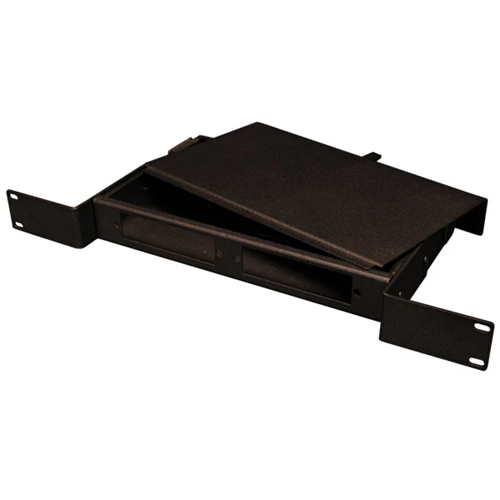

• Slide-Off Cover: Allows convenient access for installation and maintenance.

• Two Fixed Bulkhead Positions: Provides organized support for fiber adapter connections.

• Cable Entry Grommets: Includes two captive grommets for secure and organized cable routing.

• 19" or 23" Rack Compatible: Includes universal mounting supports for both rack widths.

• Flexible Termination: Can be ordered fully terminated with cabling or fiber pigtails.

• Durable Construction: Black enclosure designed for reliable rack-mounted fiber applications.

What's in the Box

• (1) 1U Rack-Mount Fiber Distribution Unit

• (2) Universal 19" or 23" Mounting Supports
