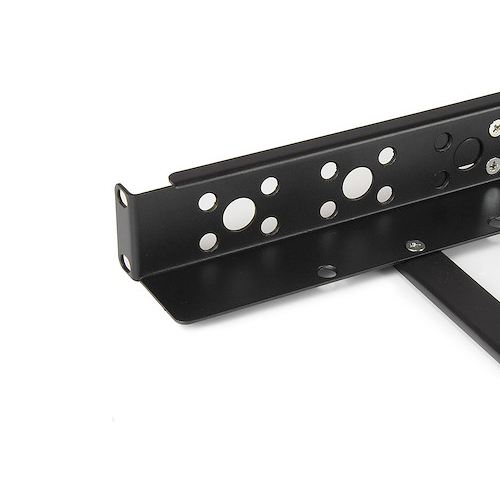

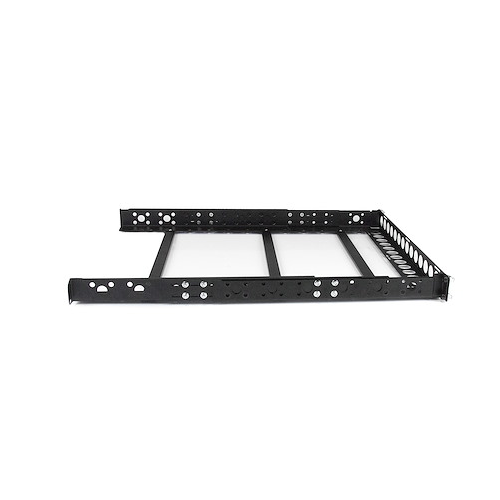

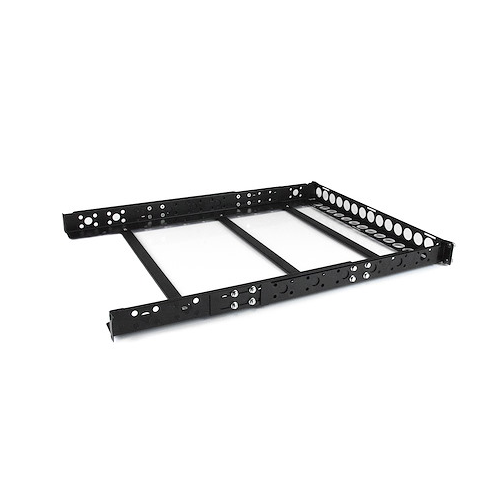

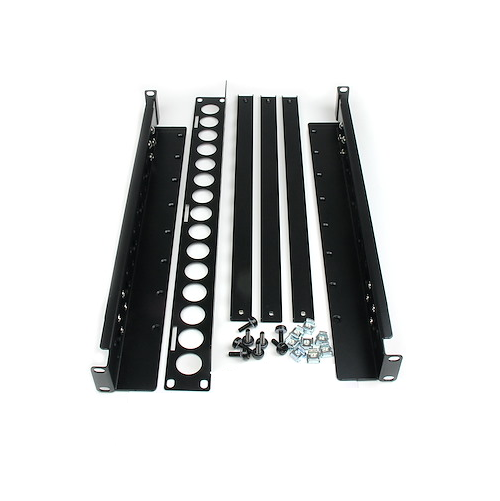

1U 19" Fixed Adjustable Depth Universal Server Rack Rails Steel Black

Product Information

Specification


1U 19" Fixed Adjustable Depth Universal Server Rack Rails Steel Black

Applications:

• Mount rackmount equipment that’s missing its original rails
• Use to rackmount OEM equipment such as Dell, IBM, HP or Apple servers that no longer have rack rails available for purchase
• Securely mount non-rackmount equipment into any 19" EIA-310 server rack

Description:

These 1U server rack rails allow you to mount non-rackmount equipment—such as desktop servers, networking devices, or KVM switches—into a 19” server rack without sacrificing valuable rack space as with a traditional shelf. They also provide an excellent solution for installing equipment with damaged rails or discontinued OEM systems, including Dell™, IBM®, HP®, or Apple servers no longer supported with replacement rails. This TAA-compliant product meets the requirements of the U.S. Federal Trade Agreements Act (TAA), making it eligible for GSA Schedule purchases.

Turn non-rackmount equipment into 1U rackmount hardware:

These rack rails add rackmount functionality to your non-rackmount gear, by cradling your equipment in an open frame supported by three sturdy crossbars. You can mount your non-rackmount equipment by mounting the rails to your server rack and placing your equipment on the undercarriage. For equipment that already features mounting holes, the rails also feature multiple mounting patterns to secure your equipment, for an added level of security.

Universal design mounts to almost any 19" server rack:

Adhering to the EIA-310 standard for 19” rackmount equipment, these mounting rails are universally compatible with 19” server racks. The depth is adjustable for a variety of rack sizes and configurations. Plus, there is a rear cable management panel that’s removable for additional customization.

Maximum durability:

To ensure your equipment is secure, these mounting rails feature cold-rolled steel construction. The durable design can support a weight load of up to 55 lb (25 kg).

 Features:

• Easily rack-mount your non-rackmount gear
• Mount equipment without sacrificing an additional 1U of rack space, unlike traditional rack shelves
• Keep your devices running cool with an open frame design that doesn’t impede airflow
• Universal support for EIA-310 19” server racks
• Adjustable depth from 420 mm (16.5” ) - 1054 mm(41.5”)
• Multiple mounting hole patterns for securing your equipment
• Maximum durability with cold-rolled steel construction
• TAA compliant for GSA Schedule purchases

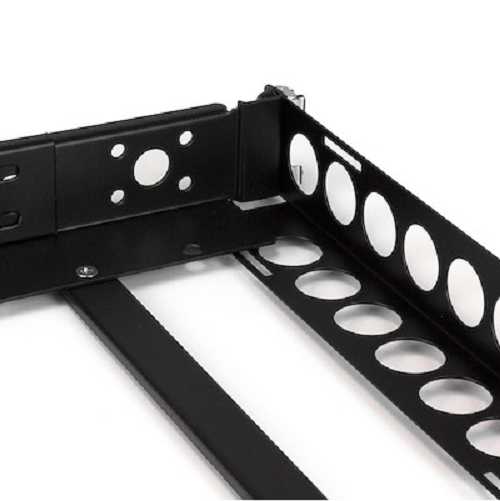

• Removable rear cable management panel
• Weight capacity up to 25 kg (55 lb)

Hardware:

• U Height:  1U
• Frame Type: Steel
• Cable Management:  Yes

Performance:

• Weight Capacity: 55.2 lb [25 kg]
