18-Port Managed Switch with 8-Port ePoE DH-LR2218-16ET-240
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
| Included Power Adapter | Yes |
| PoE | Yes |
| Ethernet Port | 16 |
| Ethernet Port Speed | 10/100 Mbps |
| Ethernet Port Uplink Speed | 10/100/1000 Mbps |
| Optical Port Uplink Speed | 1 Gbps |
| Description of Function Slots | Port1–16: 16 × RJ–45 10/100 Mbps; Port17–18: 2 × RJ–45 10/100/1000 Mbps; Port17–18: 2 × SFP 1000 Mbps (combo) |
| Operating Temperature | –10 °C to +55 °C (+14 °F to +131 °F) |
| Storage Temperature | –20 °C to +70 °C (–4 °F to +158 °F) |
| Storage Humidity | 5%–95% (RH) |
| PoE Protocol | IEEE802.3af; IEEE802.3at; Hi-PoE |
| PoE Power | Port 1–2 ≤60 W; Port 3–16 ≤30 W; Total ≤240 W |
| PoE Power Consumption Management | PoE power consumption management; PoE power on/off; Turns off PoE if overload is detected; Green PoE |
| Statics Protection | Air discharge: 8 kV; contact discharge: 6 kV |
| Lighting Protection | Common mode: 4 kV; differential mode: 2 kV |
| Product Dimensions | 440 mm × 300 mm × 44 mm (17.32"" × 11.81"" × 1.73"") (L × W × H) |
| Part No | DH-LR2218-16ET-240 |

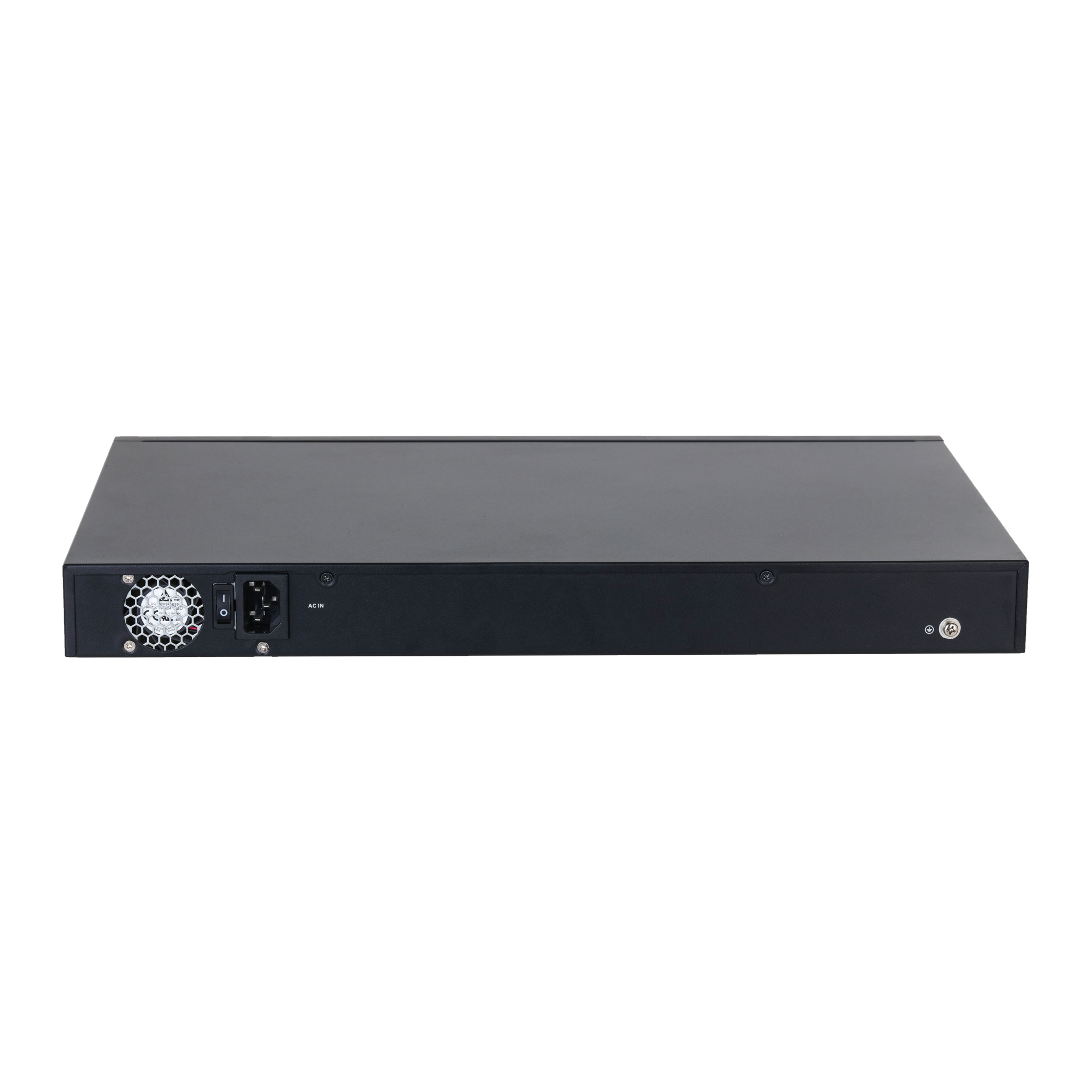

18-Port Managed Switch with 8-Port ePoE DH-LR2218-16ET-240
DESCRIPTION :
This intuitive layer-2 commercial switch readily adapts to fluctuations in the power consumption of terminal devices, making it easy to use. It supports ePoE long distance transmission, PoE watchdog, green PoE and power consumption management.
FEATURES :
⦿ Layer-two web managed ePoE switch.
⦿ Three self-adaptive transmission modes which are IEEE, E100 and E10.
⦿ Long distance PoE transmission up to 800 m with ePoE technology.
⦿ Both twisted-pair transmission and coaxial cable transmission.
⦿ IEEE802.3af, IEEE802.3at and Hi-PoE compliant.
⦿ PoE management, Green PoE, Legacy Support.
⦿ Manage through iLinksView, web client, and SNMP software's.
