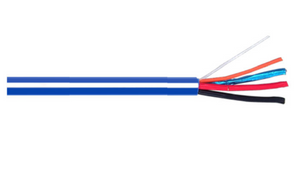

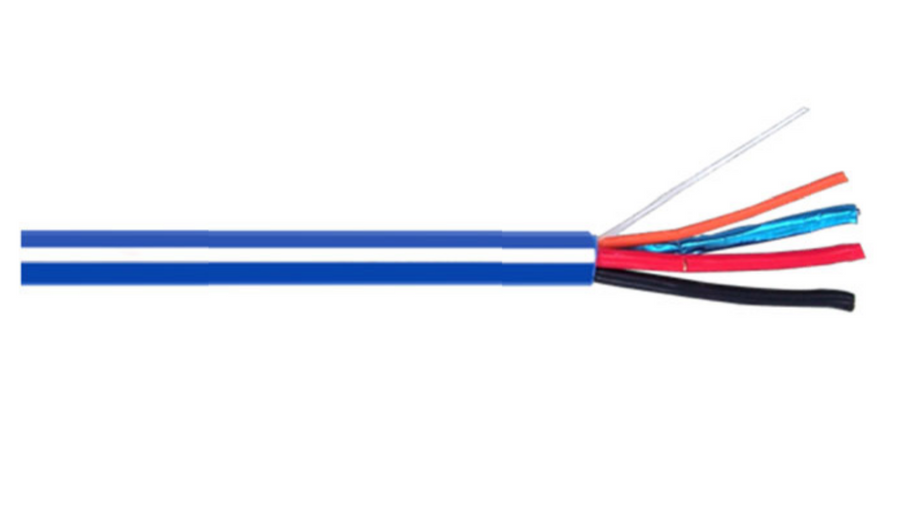

18 AWG 4C Stranded Shielded with Drain Lutron White Cable

Description:

18 AWG 4 Conductor S R Shielded with Drain

Applications:

The cable intended for power-limited circuits and fixed wiring applications within buildings. It can be used for Class 3 circuits, which are low-voltage control and signal cables commonly used in applications like home automation systems, HVAC control, and lighting control systems. Specifically suitable for such control systems.

Applicable Standards:

Power-limited circuit cables for use a fixed wiring within buildings (some are also marked for direct burial) principally for class 3 and class 2 circuits.

Usage & Environmental Condition:

Rated Voltage                              600 (V)
Rated Temperature                      75 (°C)
Product Standard Certification    c(UL)CL3&UL Direct Burial
Flame Test                                    FT4

Nominal Electrical Characteristics:

Mutual Impedance              N/A
Mutual Capacitance            51.8 pF/ft
DC Resistance                     7.62 Ohms/Mft
Mutual Impedance             77 Ohms +-? Ohms

Colors:

• Insulation Color
Component A : Black & Red
Component B : White & Green

Jacket Color:

Blue with White Stripe

Package:

1000FT / 60 LBS / REEL

Specifications:

Physical Characteristics:

Conductor                                         Standard Bare Copper
Component                                        4C
Construction (+/- 0.008mm)              18AWG:42/0.160
Stranded Dia. (mm)                            1.20
Insulation Material                           PVC-HYTREL SKIN
Nom. Thickness (mm)                         0.35
Insulation Diameter (+- 0.05mm)       PVC 1.9 / HYTREL SKIN:2.2
Jacket Material                                 PVC
Nominal Thickness (mm)                    1.10
Outer Dia. (+/-0.10mm)                      7.5
Drain Wire (Stranded
Tinned Copper)                                   7/0.20TC
Shield                                                 Aluminum/Polyester
Coverage (%)                                      ≥125%
Ripcord                                               210Dx6 nylon thread
