Specification

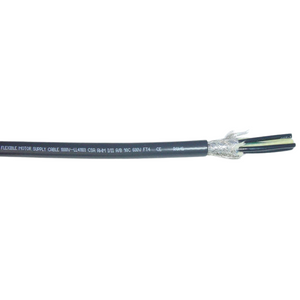

18 AWG 4 Cores VFD-THIN BC UL/CSA/TC-ER/CE PVC Shielded VFD Cable 9121804

Allowable Ampacity for 18 AWG 4 Cores VFD-THIN BC UL/CSA/TC-ER/CE PVC Shielded VFD Cable 9121804: 100 Amps

Also Known as:

Mueller Cable, Motor Supply Cable, Bare Copper Cable, Flexible Cable, Ground Wire Cable, VFD-THIN Cable, 9121804

Description:

VFD-THIN is a flexible, UL/CSA/CE approved, PVC/Nylon insulated, PVC jacketed, shielded tray cable rated, motor supply cable designed for automated systems. The 100% coverage foil and tinned copper braid shield helps with problems due to voltage spikes, harmonics, electrical interference and power distortions commonly associated with variable frequency drives. VFD-THIN can be used to connect alternating current variable frequency drives to alternating current variable drive motors and is TC-ER (tray cable) approved for open wiring (exposed run). This motor supply cable is also suitable for installations in wet or dry environments and is UV resistant. Can also be used indoor or outdoor and is rated for direct burial.

Construction:

• Fine bare copper strands
• Strands to American class-K as listed below
• Special PVC/nylon core insulation
• Color code VDE-0293 - black & numbered
• Ground wire in outer layer
• Fleece wrapping over cores
• 100% foil and 90% tinned copper braid shield
• Special PVC outer jacket - black (RAL 9005)
• UV resistant and direct burial approved
• Submersible pump approved
• Extremely oil & chemical resistant

Technical:

• Working voltage: 600/1000v (UL/ CSA)
• Working voltage: 1000v (WTTC)
• Test power voltage: 3000 volts
• Flexing bending radius: 7.5 x Ø
• Temperature range: -25º C to +90º C
• Flame retardant: IEC 60332.1-2, FT-4
• Insulation resistance: 20 MΩ x km

Approvals:

• UL type MTW, NFPA 79 2007
• UL AWM 90 Deg C.
• Class-1, div-2 NEC Art 336,392,501
• UL TC-ER (tray cable exposed run)
• CSA AWM II A/B, FT4 - 90 Deg C.
• c(UL) CIC/TC, FT-4
• CE Low Voltage Directive 73/23/EEC and 93/68/EEC
• ROHS compliant

Specification:

• Size AWG: 18
• Number of Stranded: 19/30
• Number of Cores: 4
• Nominal OD: 0.390'' Inch
• Nominal OD: 9.9 mm
• CU Weight: 35 LBS/MFT
• Weight 1000ft: 110 LBS/MFT
• Part Number: 9121804

*Data provided on this page is subject to change based on different manufacturers' variances

** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
