18 AWG 4 Cores H05BQ-F/H07BQ-F Medium-Duty Flexible PUR Orange Cable 4301804Allowable Ampacity for 18 AWG 4 Cores H05BQ-F/H07BQ-F Medium-Duty Flexible PUR Orange Cable 4301804: 100 Amps
Also Known as:
Mueller Cable, H05BQ-F Cable, H07BQ-F Cable, Medium-Duty Cable, Multi-Conductor Cable, 450/750V Cable, EPR Rubber Cable, Flexible Cable, 4301804 Cable
Description:

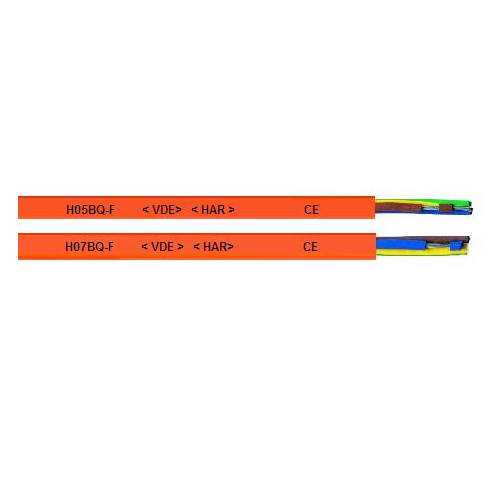

H05BQ-F / H07BQ-F are harmonized, medium-duty, flexible, EPR rubber insulated, orange polyurethane jacketed multi-conductor European cords. Recommended for use with medium mechanical loads in dry, damp or wet environments. Commonly found in connections to commercial and agriculture electric tools such as such as drills, hand-held saws, circular saws and portable motors. May also be used in connections to soldering equipment and heating apparatus providing there is no contact with the actual hot parts or heat rays. H07BQ-F can commonly be found in other machinery in agriculture, building sites, docks and refrigeration plants. The robust PUR jacket adds abrasion, notch and tear resistance as well as chemical resistance to oils, fats, petrol, water, ozone, UV radiation, hydrolysis and microbes. Common European designation is NGMH11YÖ.
Construction:
• Fine bare or tinned copper strands
• Strands to VDE-0295 Class-5, IEC 60228 Cl-5
• Rubber core insulation to VDE-0282 Part-1
• Color code VDE-0293-308 and HD 308 S2
• Polyurethane outer jacket - orange (RAL 2003)
• Extremely oil and chemical resistant
Technical:
• Working voltage: 300/500 volts
• Voltage: 450/750v (16 AWG and up)
• Testing voltage: 2000/2500 volts
• Flexing bending radius: 5.0 x Ø
• Static bending radius: 3.0 x Ø
• Flexing temp: -40º C to +80º C
• Static temp: -50º C to +90º C
• Flame retardant: IEC 60332.1
• Insulation resistance: 20 MΩ x km
Approvals:
• HD22.10 S1
• VDE-0282 Part-10
• CE Low Voltage Directive 2014/35/EU
• IEC 60245-4
• RoHS compliant
Specification:
• Size AWG: 18
• Stranded: 24/32
• Number of Cores: 4
• Nominal OD: 0.268 - 0346 Inch
• Weight CU: 19 LBS/MFT
• Weight 1000ft: 54 LBS/MFT
• Part Number: 4301804
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
