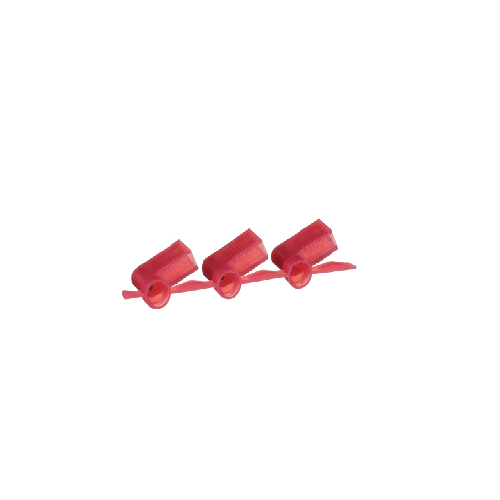

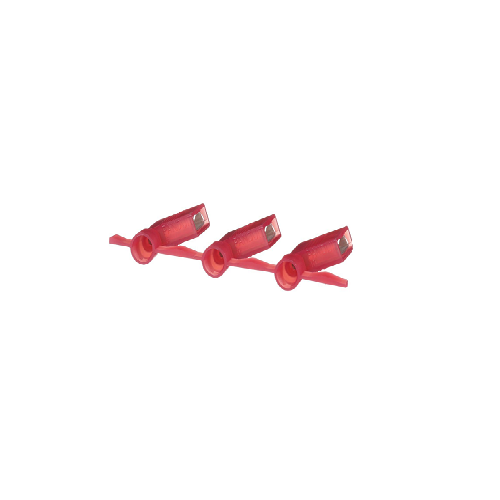

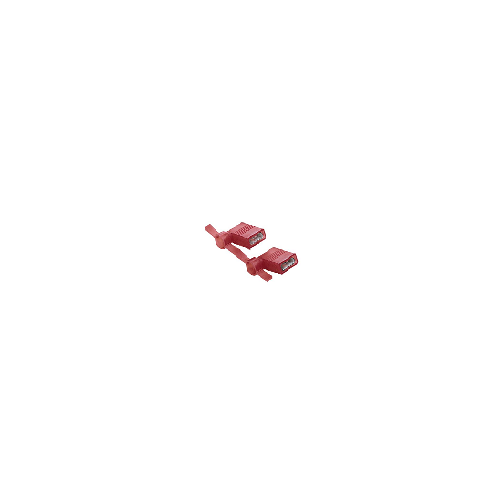

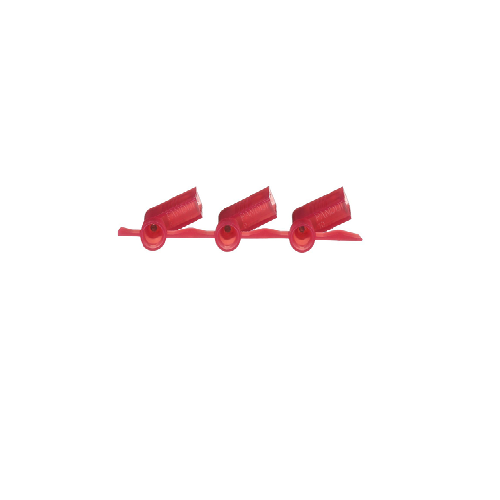

18-22 AWG 250 x 032 Tab Disconnects Red Nylon DNFR18250FIB-KD (Pack of 1500)
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
Specification:
| Disconnect Type | Female Disconnect-Right Angle |
| Insulation Material | Nylon |
| Insulation Type | Fully Insulated |
| Maximum Copper Conductor Size (AWG) | 18 |
| Maximum Wire Size (AWG) | 18 |
| Minimum Wire Size (AWG) | 22 |
| Wire Strip Length (In.) | 11/32 |
| Wire Strip Length (mm) | 8.7 |
| Tab Size (In.) | 0.250 x 0.032 |
| Tab Size (mm) | 6.3 x 0.8 |
| Standards Met | UL 310, CSA 22.2 No.153 |
| Maximum Voltage (V) | 600 |
| Base Material | Brass |
| Finish/Coating | Tin-Plated |
| Color Code | Red |
| Barrel Type | Funnel |
| Flammability Rating | UL94-HB |
| Maximum Operating Temperature (°C) | 105 |
| Maximum Operating Temperature (°F) | 221 |
| Sub Brand | Reel Smart |
| Tongue Angle | Right Angle |
| Packaging Type | Reel |
| Product Type | Disconnect |
| For Use With | Crimp press with CA9 (CD9-9C) or CA-800EZ (CD-800-9) applicator |
| Maximum Voltage (kV) | 0.6 |
| Part No | DNFR18250FIB-KD |
DESCRIPTION :
Dis,F,RA,FIRdNy,.250x.032",22-18AWG,1500.
FEATURES :
⦿ Internal wire stop assures proper length of insertion into terminal barrel, providing a higher quality connection
⦿ Right angle design for use in limited space applications
⦿ Fully insulated design provides protection from electrical shorts
⦿ Continuously molded design provides reliable, consistent performance through the applicator for a high quality termination every time
⦿ UL and CSA rated up to 600 V per UL 310
⦿ Disconnect can be inserted and removed from the male tab without the use of tools for lower installed cost
⦿ UL Flammability UL 94V-2/HB, maximum insulation temperature 221°F (105°C)
