1750 MCM High Voltage Round Aluminum Wire and Tape Shield XLPE Insulation HDPE Jacket 69 kV

1750 MCM High Voltage Round Aluminum Wire and Tape Shield XLPE Insulation HDPE Jacket 69 kV

Application:

• Transmission and distribution circuits, in cities with high load densities. Also, for Industrial and Commercial installations.
• May be installed in wet or dry locations indoors or outdoors in conduit and underground ducts.

Also Known As:

1750 MCM High Voltage Cable, Aluminum Shield Cable, 1750 MCM HDPE Jacket, Aluminum Wire and Tape Cable, 1750 MCM XLPE Shield Cable, Tape Aluminum Cable.

Standards:

• IEC 60840: Power cables with extruded insulation for rated voltages above 30 kV up to 150 kV.
• AEIC CS9: Specifications for extruded insulation power cables and their accessories rated above 46 kV through 345 kV.
• ICEA S-108-720: Standard for extruded insulation power cables rated above 46 kV to 345 kV.

Features:

• True triple vertical extrusion system for optimum insulation concentricity, and excellent
electric field control
• Dry cure process.
• Closed handling of raw materials system to eliminate any contact with ambient, until extrusion process ends
• Low dielectric losses.
• Metallic shield for ground connection.
• Sunlight resistant jacket.

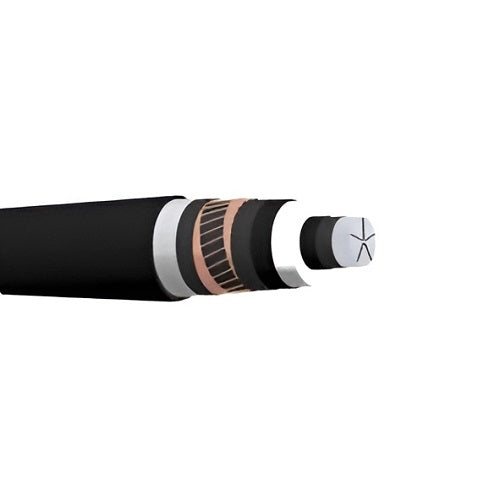

Construction:

• Conductor: 1350-H19 Aluminum, Class B or Class 2 filled stranding compacted round or segmental as per ASTM B400 or IEC 60228.
• Semiconducting Tape:  A semiconducting tape may be applied helically with an overlap, as required.
• Conductor Shield: Semiconducting cross-linked polyethylene.
• Insulation: High quality, heat, moisture, ozone and corona resistant, cross-linked polyethylene (XLPE).
• Insulation Shield: Semiconducting cross-linked polyethylene.
• Water Barrier: Semiconducting water blocking tape, helically applied over the insulation shield.
• Metallic Shield:  Solid, annealed uncoated copper wires per ASTM B3, helically applied and uniformly spaced. A copper tape helically applied over the copper wires, with open helix and water blocking tape.
• Radial Moisture Barrier: A smooth aluminum laminated tape longitudinally applied and bonded to outer jacket.
• Jacket: Black high density polyethylene (HDPE) sunlight resistant thermoplastic compound.

Specifications:

• Size: 1750 MCM
• Shape: Round
• Number of Strands: 85
• Conductor Diameter (In): 1.48
• Insulation Thickness (mil): 320
• Insulation OD (In): 2.27
• Shield Number of Wires: 29
• Shield Size AWG: 13
• Approximate Outside Diameter (In): 2.99
• Approximate Net Weight (lb/ft): 4.2
• Minimum Bending Radius (In): 61
• Maximum Pulling Tension (lb): 10,500
• Conductor Resistance dc @ 20 °C (Ω/kft): 0.010
• Conductor Resistance dc @ 90 °C (Ω/kft): 0.013
• Capacitance (pF/ft): 105.4
• Charging Current (A/kft): 1.58
