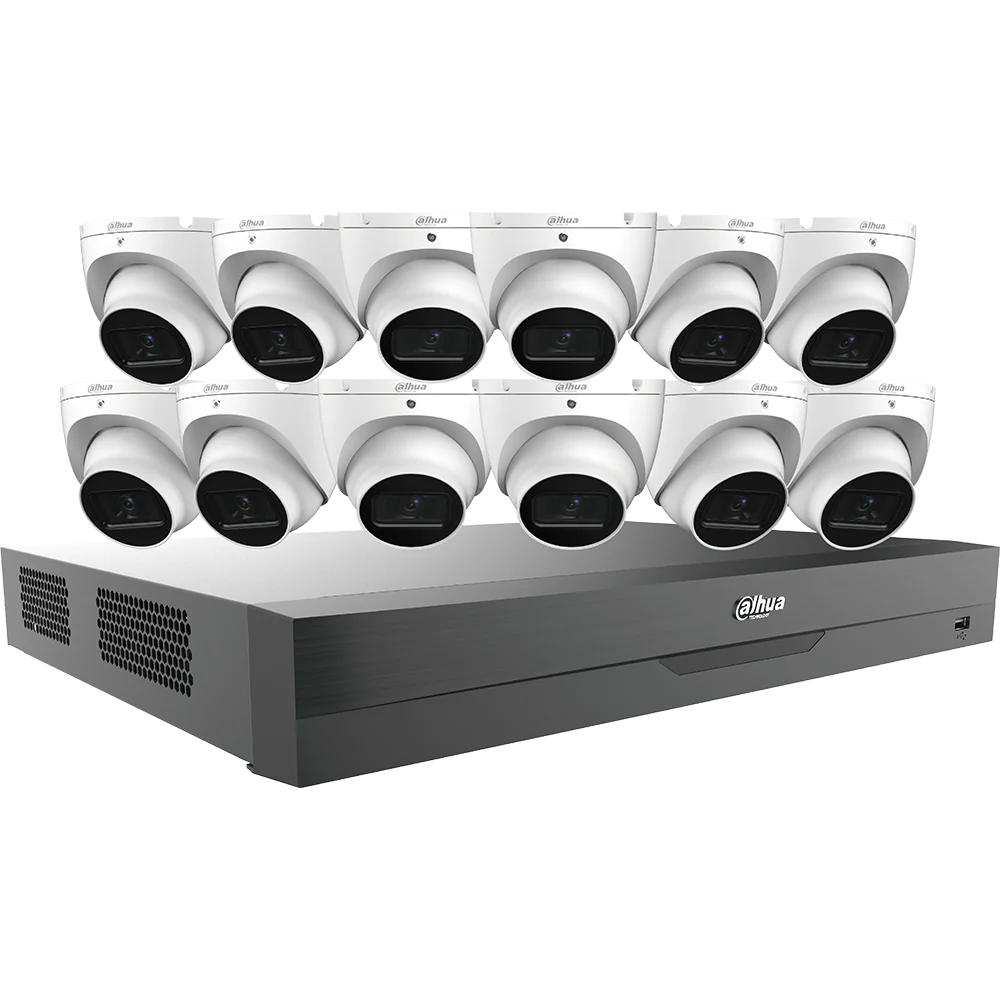

16-Channel HDCVI Security System 13-Piece Turret Cameras C865E124A
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
| Image Sensor | 1/2.7-in. CMOS Sensor |
| Effective Pixels | 2880 (H) x 1620 (V), 5 MP |
| Aspect Ratio¹ | 16:9 |
| Scanning System | Progressive |
| Electronic Shutter Speed | 1/30 s to 1/100,000 s |
| Minimum Illumination | Color: 0.01 lux at F1.6, 30 IRE 0 lux with IR on |
| S/N Ratio | More than 65 dB |
| IR Distance | Up to 30.0 m (98.43 ft) |
| IR On/Off Control | Auto, Manual |
| Lens Type | Fixed-focal |
| Mount Type | M12 |
| Focal Length | 2.8 mm |
| Maximum Aperture | F1.6 |
| Angle of View | Horizontal: 111° Vertical: 58° Diagonal: 132° |
| Resolution | 5 MP (2880 x 1620), 4 MP (2560 x 1440), 1080p (1920 x 1080), 960H (960 x 480) |
| Part No | C865E124A |
16-Channel HDCVI Security System 13-Piece Turret Cameras C865E124A
DESCRIPTION :
WizSense Series devices combine Dahua's powerful Analytics+ with an intuitive and easy to use interface. WizSense devices offer Smart Motion Detection and Perimeter Protection functions that focus on human and vehicular images and ignore irrelevant images to capture important video while reducing false alarms. WizSense Series devices provide powerful general surveillance for small to medium size businesses at a sensible price.
FEATURES :
HDCVI Cameras
⦿ 1/2.7-in. 5 MP Progressive-scan CMOS Sensor
⦿ 5 MP at 25 fps Maximum Resolution, 2.8 mm Fixed Lens
⦿ 16:9 Aspect Ratio for no Image Stretching
⦿ Maximum IR Length 30 m (98.43 ft), Smart IR
⦿ IP67 Ingress Protection

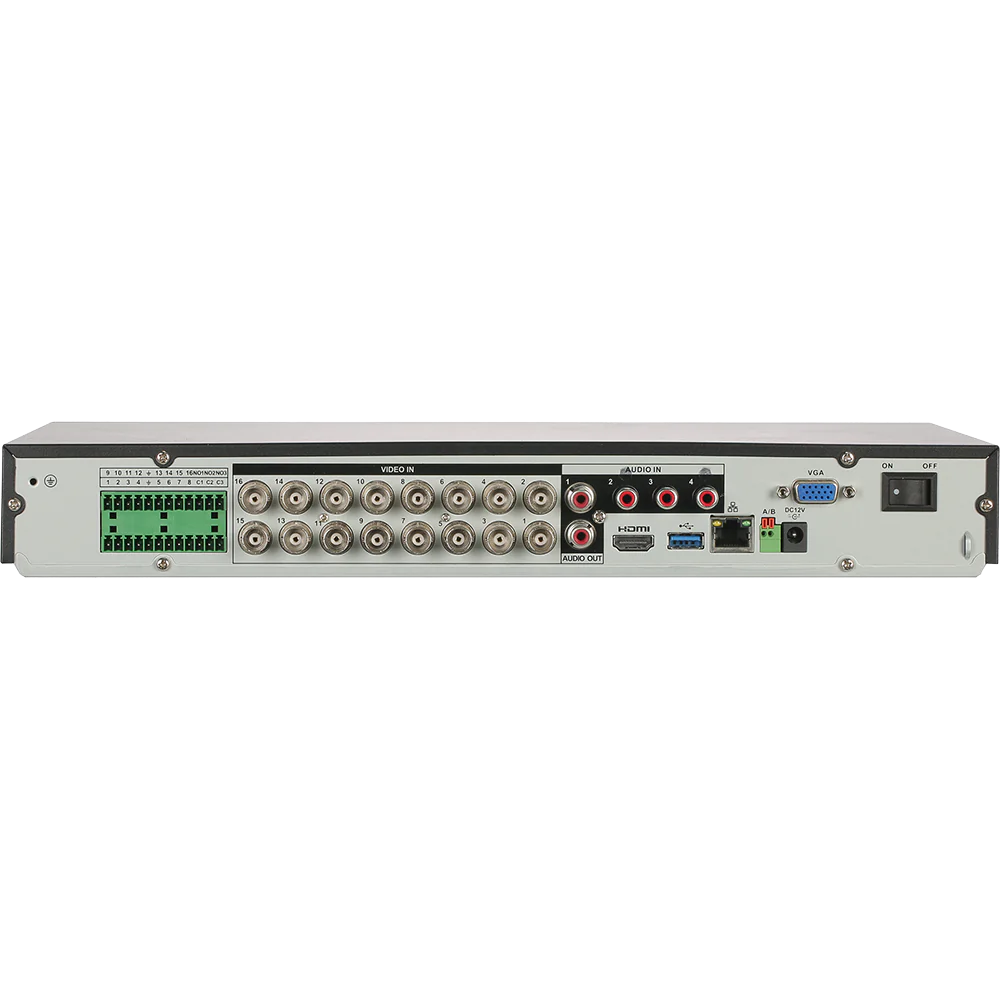

HDCVI DVR
⦿ 4 TB Pre-installed Hard Disk Drive
⦿ 16-Channel Penta-brid Recorder, Dual-streaming
⦿ Smart H.265+ and Smart H.264+ Dual Codec
⦿ 5 MP at 12 fps or 4K at 7 fps Recording Resolution on All HDCVI Channels
⦿ AI Coding Technology for High-quality Human/Vehicle Video
⦿ Perimeter Protection and Smart Motion Detection (SMD)
Download PDF Spec Sheet
