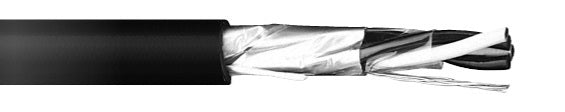

16/2 Paired Overall Shield (POS) EPR/LS0H

16/2 PAIRED OVERALL SHIELD (POS) EPR/LS0H
Roll over image to Zoom

16/2 Paired Overall Shield (POS) EPR/LS0H

Write a Review
Ask a Question Download PDF
SKU: NNC0726X
Min Length: 1 FT
Max Length: 10000 FT

Categories:

Price:
$0.00 /FT
$0.00 /FT
Shipping Cost Calculated at Checkout. Standard Lead Time is 1 to 6 Business Days.
Free Shipping: On orders above $1000
Quantity must be 1 or more

Enter the required footage in the quantity box - Cut to one length

Where are we? 4 Continents 8 Countries

map
garrie

Got any Questions?

Speak with a real person who will go out of their way to help you!

Call Us: 1-516-482-6313Text Us: 1-516-703-3460

Chat

Live Chat: Bottom Right Corner!

Email Us

info@nassaunationalcable.com

Quick Support

CONDUCTOR: 18 AWG - 10 AWG Class B stranded tinned copper per ASTM B-33 and B-8

INSULATION: Flame-Retardant Ethylene Propylene Rubber (EPR)

COLOR CODE: Black/ White; Alpha-numeric print; alternate & inverted

SHIELDING: Individual and overall 100% coverage, aluminum/polyester foil shield

JACKET: Black sunlight and moisture resistant flame-retardant themoplastic Chlorinated Polyethylene (CPE)

TEMPERATURE RANGE: 90°C Dry/90°C Wet

VOLTAGE RATING: 600V rms, Max



Industry Approvals:

  •  UL Standard 1277 Type TC-ER
  •  NEC Article 501
  •  Passes IEEE 383 Flame Test (70,000 btu)
  •  ICEA S-73-532
  •  ICEA S-95-658 (WC70)
  • UL 1581, UL 1685

*Data provided on this page is subject to change based on different manufacturers' variances

** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
