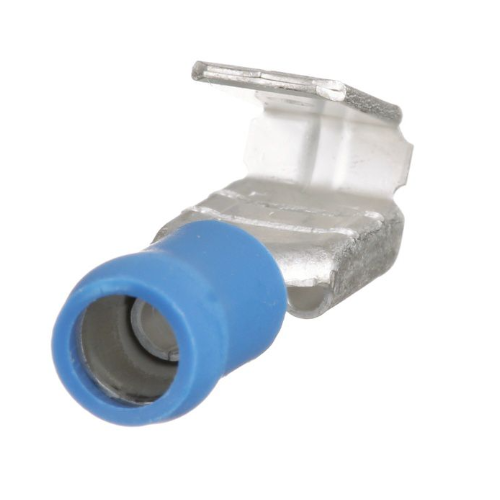

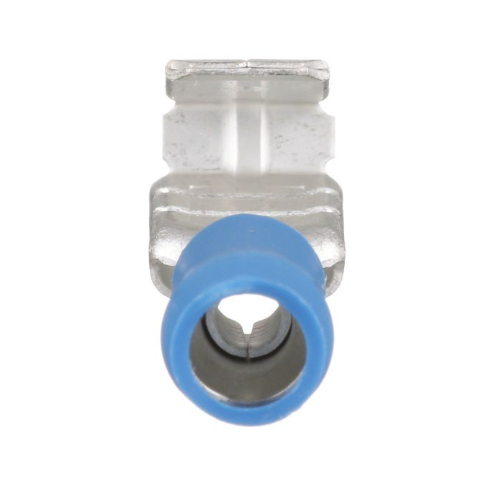

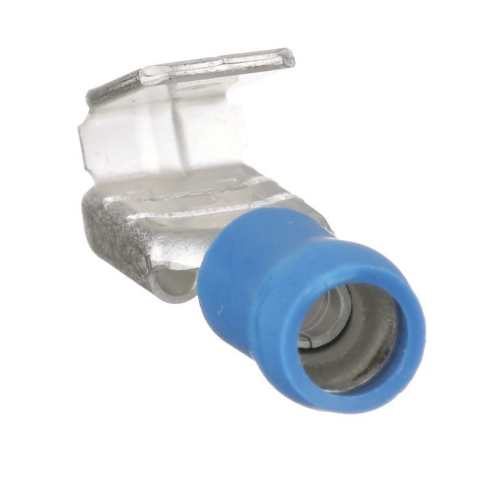

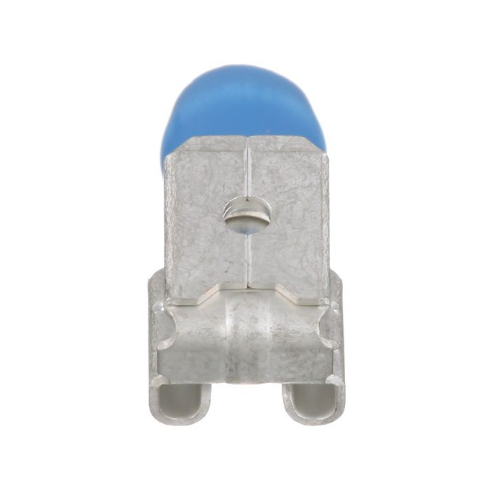

16-14 AWG StrongHold Piggyback Disconnect Terminal Vinyl Barrel EDV14-250P-LYY (Pack of 50)

Product Information

Specification

About:

This piggyback disconnect terminal is suitable for wires that are sized 16 to 14 AWG, which is a standard gauge size used for a variety of medium current applications. The "StrongHold" is likely a brand or product line name, indicating a robust design or a particular level of quality. The term "Piggyback" refers to the style of disconnect that allows one male disconnect to be inserted into the back of the female disconnect while the female part can still be connected to a male tab, facilitating a parallel connection.

Also Known As:

• Piggyback spade connectors
• Piggyback slide-on connectors
• Piggyback quick disconnect terminals

Common Applications:

• In consumer electronics for creating multiple connection points from a single power source
• In automotive wiring for adding accessories or branching circuits without cutting or splicing wires
• In commercial electrical installations where additional connections are required from a single terminal

Standards:

• UL (Underwriters Laboratories) certification for safety and quality
• CSA (Canadian Standards Association) standards for the Canadian market
• RoHS (Restriction of Hazardous Substances) compliant for environmental protection

Construction:

• Constructed with a conductive metal, often brass or tin-plated copper, for the crimp barrel that is crimped onto the wire
• A vinyl insulation sleeve covers the metal crimp area, providing electrical insulation and user safety
• The piggyback design features a standard female disconnect that also has an additional male tab, allowing for the aforementioned parallel connections

Features:

• The part number indicates that it's sold in a pack of 50, ideal for both small projects and professional applications
• Vinyl insulation is typically color-coded for quick identification of the size and wire gauge compatibility
• Allows for the creation of parallel connections without the need for wire splicing
• The design can be a timesaver for wiring applications that require frequent changes or additions
• Compatible with standard crimping tools for quick, reliable crimping of wires
