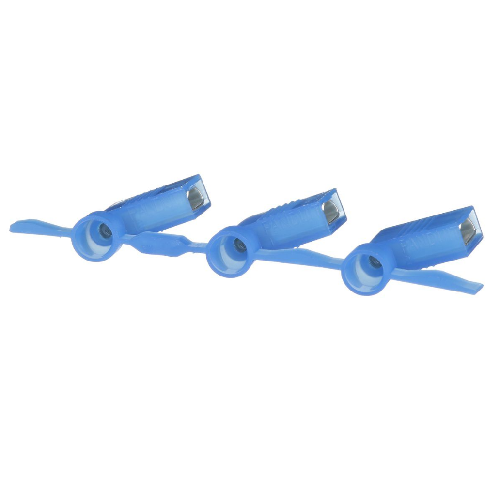

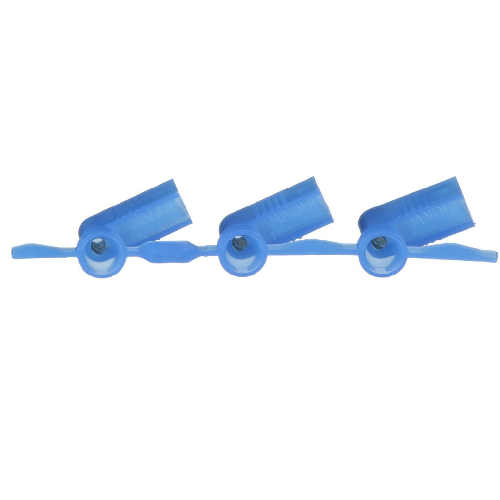

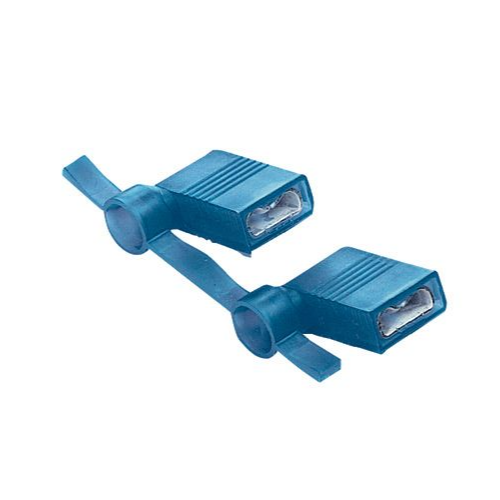

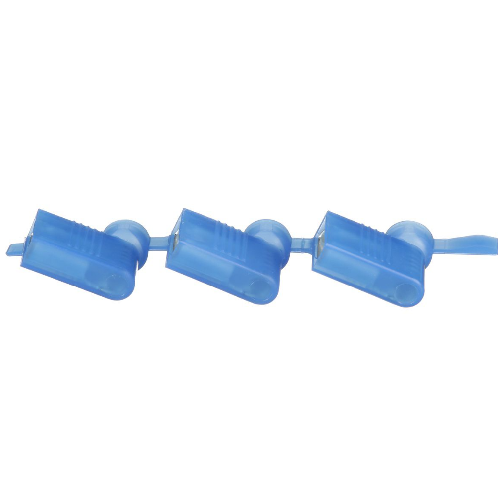

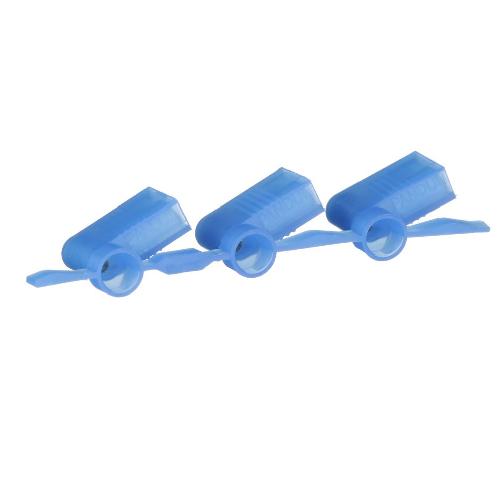

16-14 AWG Reel Smart Female Disconnect Right Angle Nylon Insulated DNFR14250FIB-KD (Pack of 1500)

Product Information

Specification

About:

The DNFR14250FIB-KD is a nylon-insulated, right-angle female disconnect tailored for 16-14 AWG wires. Designed for applications requiring space-efficient connections, this Reel Smart product allows for streamlined installations even in tight areas. The package contains 1500 units, catering to bulk requirements and large projects.

Also Known As:

• DNFR14250FIB-KD 90-Degree Female Quick Disconnect
• 16-14 AWG Reel Smart Right Angle Nylon-Insulated Female Terminal
• Directional DNFR Series Female Terminal Connector

Common Applications:

• Industrial automation panels with space restrictions.

• Automotive systems, especially in constrained areas like instrument clusters or under the dashboard.

• Audio and video equipment setups in entertainment systems.

• Household appliances where wiring requires direction-specific connections.

• Compact electrical boxes or enclosures where straight connectors are less feasible.

Standards Met:

• UL Listed or Recognized

• RoHS Compliant

• CSA Certified

Construction:

• Terminal Body: Typically constructed from high-conductivity brass or copper to ensure optimal electrical performance and durability against corrosion.

• Insulation: Made from premium nylon that provides protection from external elements such as heat and chemicals.

• Plating: Generally tin-plated to enhance electrical conductivity and prevent oxidation.

Features:

• Space-Efficient Design: The right-angle design is tailor-made for installations with limited space or where directional wire routing is necessary.

• Accurate Crimping: Designed for reliable and consistent crimping with standard tools.

• Robust Insulation: The nylon insulation not only adds an aesthetic appeal but also ensures a secure barrier against potential short circuits.

• Color-coded: Red coloring typically indicates 16-14 AWG wire gauge size, ensuring quick identification and correct usage.

• Dependable Connection: Designed to provide a secure fit when connected with a compatible male disconnect.

Specification:
