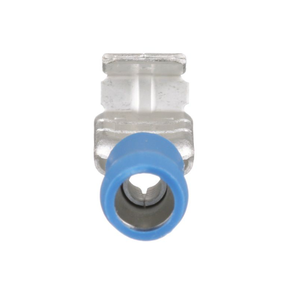

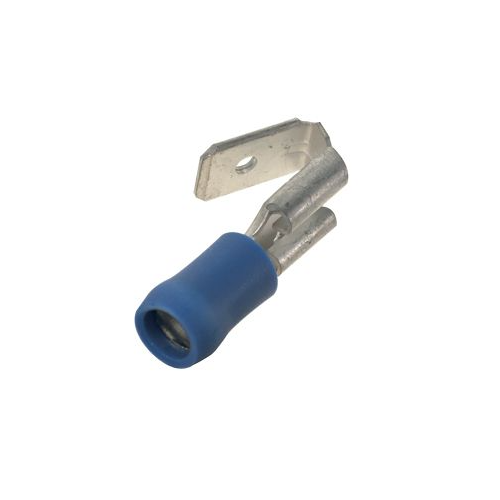

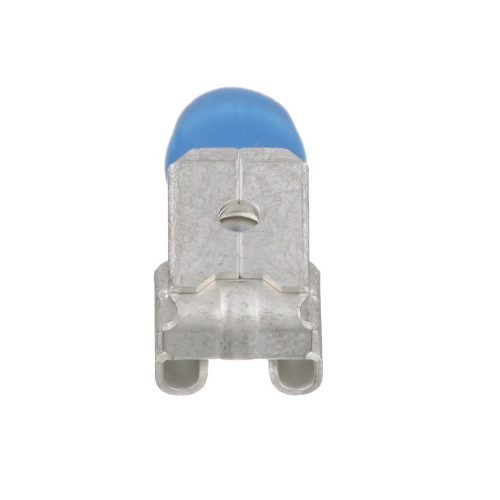

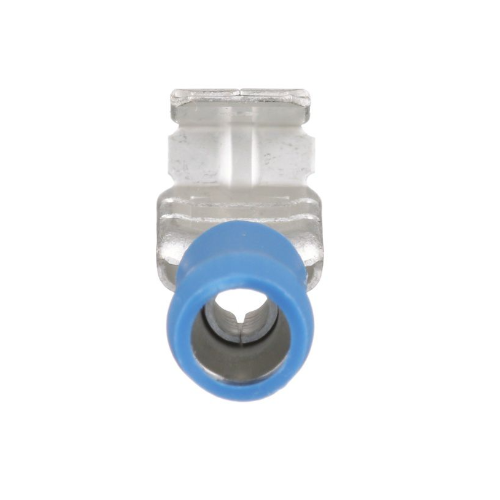

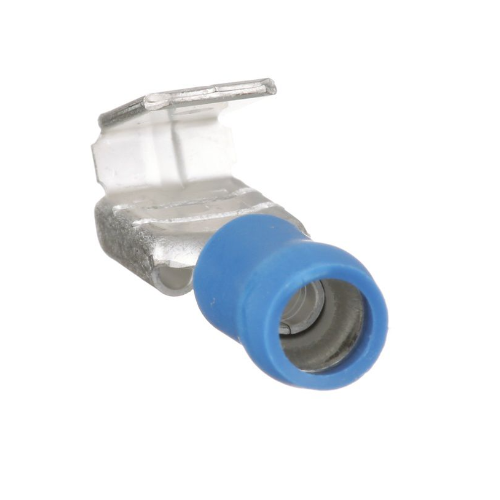

16-14 AWG Pan-Term Piggyback Disconnect Vinyl Insulated DV14-250P-LYY (Pack of 50)

Product Information

Specification

About:

The "16-14 AWG Pan-Term Piggyback Disconnect Vinyl Insulated DV14-250P-LYY (Pack of 50)" is a package of crimp-style electrical connectors specifically designed to accommodate wire sizes from 16 to 14 AWG, which are often used for moderate current applications.

Also Known As:

• Piggyback Crimp Terminals
• Vinyl Insulated Quick Disconnects
• Female/Male Spade Terminals
• Crimp-On Piggyback Connectors

Common Applications:

• Power connections in various consumer electronics that require reliable, yet detachable, connections
• Commercial and residential HVAC systems for thermostat or control wiring
• Automotive wiring systems for connections to components such as speakers, lights, and auxiliary devices
• Marine vehicles for electrical installations that benefit from quick disconnect features
• Industrial equipment that necessitates frequent maintenance or modular connectivity

Standards Met:

• UL Recognized, indicating adherence to safety standards set by Underwriters Laboratories
• CSA Certified, demonstrating compliance with standards set by the Canadian Standards Association
• RoHS Compliant, ensuring that the connectors are manufactured without certain hazardous substances

Construction:

• Brass or other conductive metals for the terminal, providing a low-resistance path for electricity
• Vinyl insulation to ensure durability and electrical safety
• A configuration that includes both male and female components to facilitate piggyback connections
• Crimp zones designed to create a strong mechanical bond to the wire

Features:

• Multiple connection points allow additional circuits to be added to existing equipment without expensive rework
• Combination of female disconnect and male tab allows versatility in points of connection
• Disconnect can be inserted and removed from the male tab without the use of tools for lower installed cost
• Rated up to 300 V
• Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications
• UL Flammability UL 94V-2/HB, maximum insulation temperature 194°F (90°C)

Specification:
