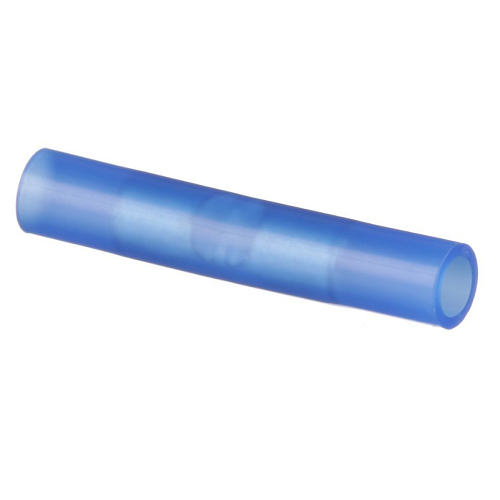

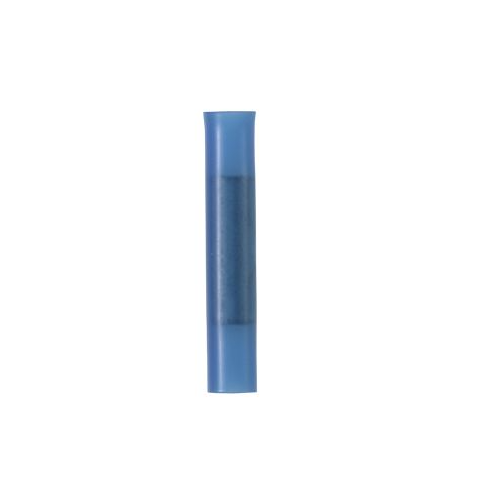

16-14 AWG Butt Splice Copper Nylon 600V BSN14-C (Pack of 100)
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
Specification :
| Product Type | Butt Splice |
| Maximum Copper Conductor Size (AWG SOL) | #14 |
| Maximum Copper Conductor Size (AWG STR) | #14 |
| Minimum Copper Conductor Size (AWG SOL) | #16 |
| Minimum Copper Conductor Size (AWG STR) | #16 |
| Maximum Metric Conductor Size (mm²) | 2.5 |
| Minimum Metric Conductor Size (mm²) | 1.5 |
| Sub Brand | Pan-Term |
| Copper Conductor Size (AWG) | #16 - #14 |
| Barrel Type | Standard |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
| Base Material | Copper |
| Insulation Material | Nylon |
| Standards Met | BSN14-C |
| Finish/Coating | Tin-Plated |
| Color Code | Blue |
| Overall Length (In.) | 1.15 |
| Overall Length (mm) | 29.2 |
| Overall Width (In.) | 0.2 |
| Overall Width (mm) | 5.1 |
| Wire Strip Length (In.) | 9/32 |
| Wire Strip Length (mm) | 7.1 |
| UL Temperature Rating (°C) | 105 |
| UL Temperature Rating (°F) | 221 |
| CSA Temperature Rating (°C) | 105 |
| CSA Temperature Rating (°F) | 221 |
| Part No: | BSN14-C |
Type BSN
• UL Flammability UL 94V-2/HB, maximum insulation temperature221°F (105°C)
• Butted configuration provides low profile for limitedspace applications
• Brazed seam protects terminal barrel from splitting during thecrimp process.
• Designed to splice two solid or stranded wires together torepair or lengthen wires
• Internal wire stop assures proper length of insertion intoterminal barrel
• UL and CSA rated up to 600 V per UL 486C
Download PDF Spec Sheet
