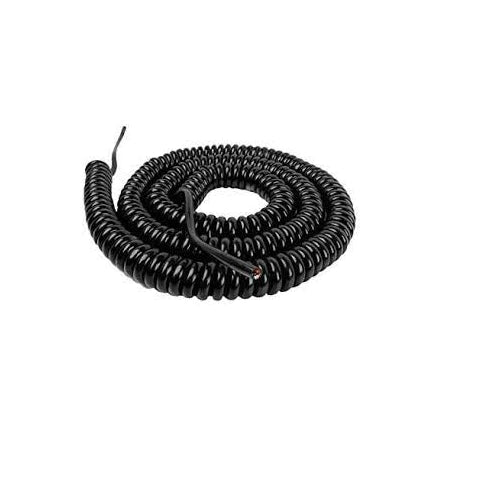

16/10 SOOW UL/CSA, Retractable Coil Cord, 4FT Retracted, 20FT Extended

Product Information

Specification

16/10 SOOW UL/CSA, Retractable Coil Cord, 4FT Retracted, 20FT Extended

Color Code:
10 Conductors: Black, White, Red, Green, Orange, Blue, White/Black, Red/Black, Green/Black, Orange/Black

Applications:

SOOW Flexible Cord 600V applications include portable tools and equipment, portable appliances, small motors and associated machinery. Portable Cord Cable is a multi-conductor flexible wire used in electrical connections

Also Known As:

16/10 Retractile Cord, 16/10 SOOW Cord, 16/10 Portable Cord, 16/10 Retractile SOOW Cord, 16/10 SOOW Flexible Cord, 16/10 High flexibility Cord, 16/10 Retractile SOOW 600V, 16/10 Retractile 600V, 16/10 Retractile Flexible Cord.

Features:

SOOW Retractile Cords Are Excellent resistance to oil and moisture. Good tensile strength, elongation and aging characteristics. They are used in portable tools, oil drilling rigs, power supply systems, motors, and machines. High flexibility. Excellent abrasion resistance. Sunlight-resistant. UL Listed and CSA Certified for indoor and outdoor use. Temperature range: -50ºC to +105ºC

• SOOW has oil resistant insulation and oil resistant outer jacket

Standards:

• UL Flexible Cord -
• CSA Flexible Cord
• RoHS Compliant

Specifications:

Size: 16 AWG
Number of Conductors: 10
Gauge Strands: 16 GA 65/34 BC
Jacket Material: CPE SOOW
Jacket Diameter: .680"
Diameter: .120
Weight: 5.9 Lbs
Insulation: EPR
Retracted Length: 48"
Extended Length: 240"
Coil Diameter: 2.41"
