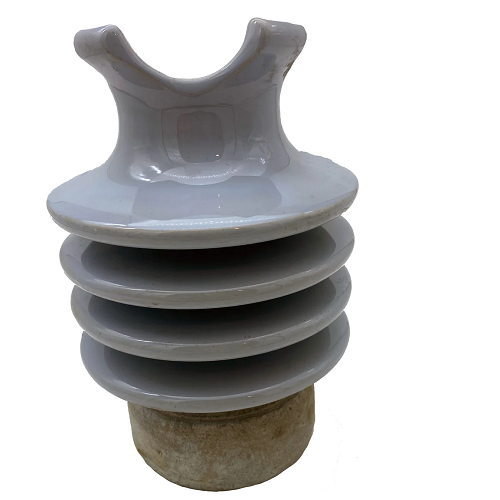

15 kv F Neck Distribution Post insulators 4320PX-70

Product Information

Specification

About

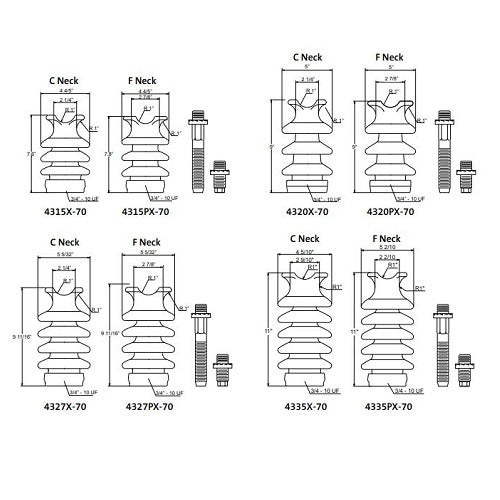

Line posts are support-type insulators and are installed on wooden, concrete, or metal cross arms. These are specially designed for distribution lines with typical application voltages ranging from 25 kV to 45 kV, as per standard ANSI (C29.7). Their strong and robust structural form provides unequal mechanical and electrical characteristics. Nearly impervious to puncture, these insulators are generally used in areas with hot lighting zones. Designs have a cantilever resistance ranging from 6.6 kN to 12.5 kN.

Specification:

Dry arcing distance in inches: 5 3/4
Leakage distance in inches: 11
Cantilever strength pounds: 2000
Typical application voltage: 20
Low-frequency dry flashover: 80
Low-frequency wet flashover: 55
Critical impulse flashover positive: 110
RMS to ground, kV: 15
Maximum RIV at 1000 kHz: 50


Note 1: ANSI 70 gray is standard. Brown is available by request
Note 2: Available with short or long stud, sold separately
