About:

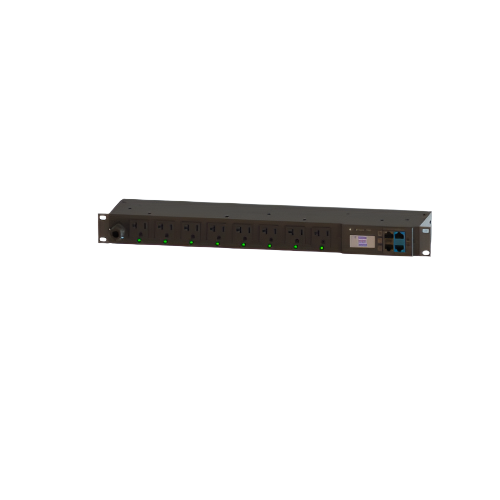

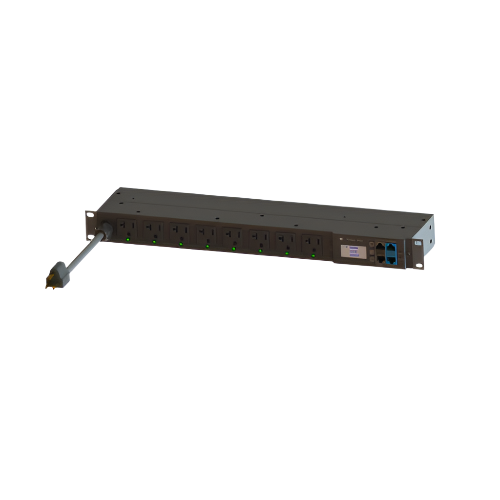

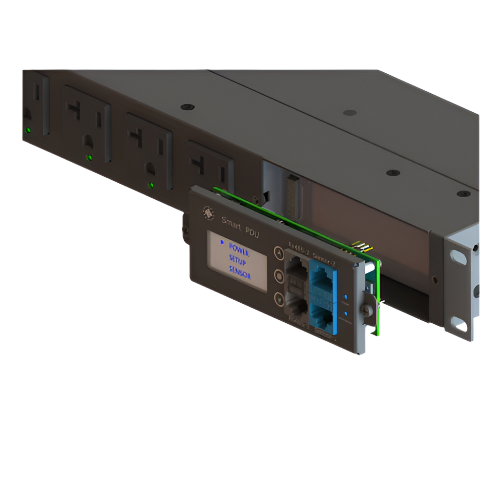

Switched Rack Power Distribution Units (PDUs) provide advanced, user-customizable power control and active monitoring. Remote outlet-level controls enable power on/off functionality for rebooting equipment remotely and restricting unauthorized access to individual outlets. Power sequencing time delays allow users to define the order in which devices power up or down, preventing circuit overloads.
Real-time current metering offers remote monitoring of connected loads, with user-defined alarms to warn of potential overloads. Users can access, configure, and control Switched Rack PDUs through MODBUS, seamlessly integrating with centralized management platforms for data center operations, capacity planning, and energy efficiency. The AP3000 series includes real power monitoring, a temperature/humidity sensor port, and locking IEC receptacles for enhanced reliability.
Also known as:
PDU, power distribution unit, smart pdu, Intelligent Rack PDU, switched pdu, network pdu, rack power distribution, pdu rack, server pdu, server rack power distribution unit.
Product Information:
| Nominal input voltage | 200-240V AC |
|
Nominal output voltage |
100-120V AC |
| Input connection | NEMA L6-30P |
| Output connections | 5-20R [8] |
| Number of power cords | 1 |
| Cord length | 3M |
| Input frequency | 50/60 Hz |
| Input current | 15/20A |
| Operating elevation | 0-3000 meters |
| Operating environment | -5 to 60°C |
| Humidity (Operating/Storage) | 5-95% RH, non-condensing |
| Dimensions | 50 H x 48 W x 448 D mm |
| Color | Black |
| Net weight | 5.73 lbs / 2.6 kgs |
| Complaints | RoHS, CE |
Features:
• EC60950 industrial standard PDU
• Multiple locking IEC socket
• Socket color management
• Compact size, only 50mm
• Optional sensor, rich function expansion
• Remote switch each port
• Accurate measurement of embedded operating system, intelligent control
• Work with centralized control platform perfectly compatible
