14 AWG Plenum RG-11 Coax Quad Shield Copper Clad Steel Cable White 78-34C-91 1000 ft Plywood Reel

Product Information

Specification

About:

RG-11 Quad Shield coaxial cables are specifically engineered to support technologies including extended bandwidth satellite service, high definition TV signals, CATV, and two-way cable modems. It ensures the cable diameter meets the stringent requirements of top connector manufacturers.

Also Known as:

14 AWG Cable, Coax Cable, Coaxial Cable, 14 AWG Coax Cable, RG11 Coax Cable, Coax RG11 Cable, Coax RG-11 Cable, Copper Clad Cable, Plenum Cable.

Performance Compliance:

• UL 13
• UL 444
• CSA C22.2 No. 214-08
• UL 1685
• UL 1666
• NFPA 262
• RoHS-compliant/RoHS 2-compliant

Applications:

• HDTV and CATV
• Two-way cable modems
• Extended bandwidth satellite service

Benefits:

• “Future-proofing” the installation. Supports extended bandwidth satellite service and
high-definition TV signals
• Exhibits better transmission characteristics
• Helps differentiate incoming service versus internal cabling infrastructure
• Provides additional mechanical and fire safety protection.

Features:

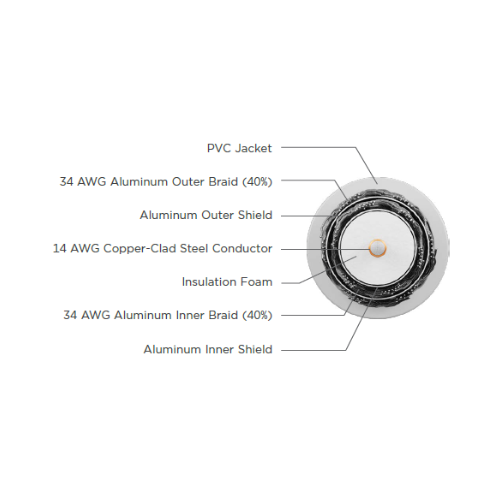

• RG-11, Quad Shield Coaxial cable with bandwidth that exceeds 3 GHz
• Tight foamed polyethylene (CM and CMR) or fluoropolymer (CMP) insulating skin  bonds around center conductor
• Interlock armored version.

Specifications:

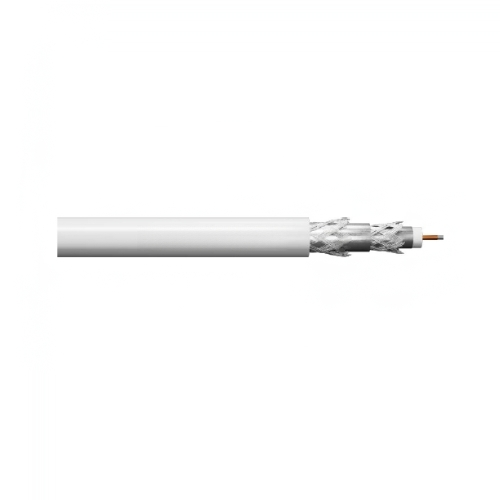

*Image is an illustration purpose only, may not reflect the exact color sold.
